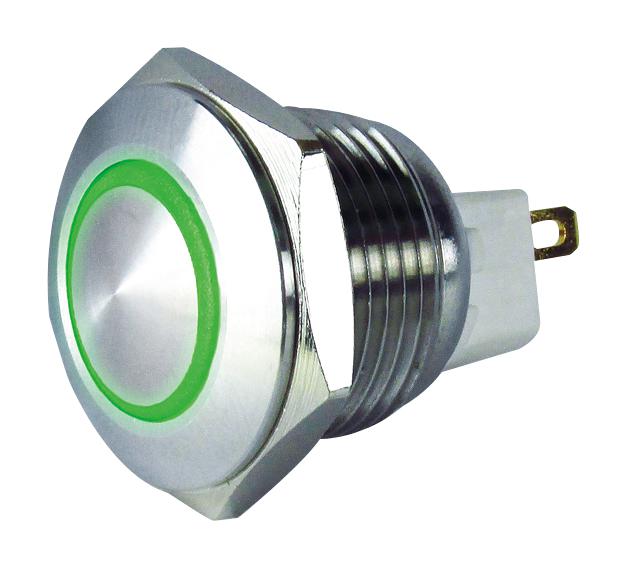

MULTICOMP-PRO MC010897 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for industrial applications requiring durability and visibility. It features a stainless steel body, gold-plated contacts, and a choice of flush, prominent, or domed tops. With a rated voltage of 48V DC and operational current over 100mA, it offers reliable performance outdoors with UL 5OE Type 4X protection. Its LED options include green, red, and blue, with a dielectric strength of 2,000V AC between live parts and ground. Suitable for panel thicknesses of 0.5 to 3mm, it withstands vibrations, shocks, and environmental conditions, ensuring long-lasting use.
MULTICOMP-PRO MC010897 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colours: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC between live parts and ground, 1000V AC between terminals
- Contact Resistance: Max 50mΩ (Initial)
- Insulation Resistance: Min 100MQ (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: Damage limit 500 m/s², Operating limit 200 m/s²
- Mechanical Life: Momentary 1,000,000 cycles, Maintained 250,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Vandal Resistant Switch – Reliable Industrial Components for Outdoor Applications
Purchase the multicomp vandal resistant illuminated switch online now for reliable performance in industrial and outdoor settings. Featuring stainless steel construction, gold-plated contacts, multiple LED colour options, and UL 5OE Type 4X protection, this switch ensures durability and visibility. It supports panel thicknesses of 0.5 to 3mm and withstands vibration, shocks, and environmental factors. With options for flush, prominent and domed tops, this switch is ideal for demanding applications requiring long-term durability and reliable operation, making it a perfect choice for professional projects.
Get multicomp vandal resistant switch today—built for durability, visibility, and long-lasting performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC010897?
You can click on the BUY or RFQ button to purchase MC010897 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010897?
You can download the MC010897 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC010897?
MULTICOMP-PRO
