MULTICOMP PRO MC010903 Vandal Resistant Switch

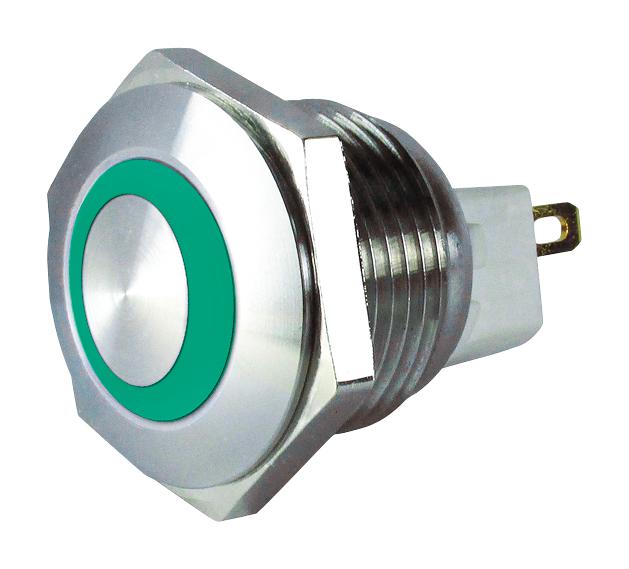

The illuminated vandal resistant switch is designed for industrial and outdoor applications, featuring a stainless steel body and UL 5OE Type 4X rating for durability. Available in flush, prominent, and domed top types, it has a 16mm hole diameter mounting, with gold-plated contact blocks for reliable performance. The switch operates at 48V DC with a contact current of over 100mA, and includes multi-color LED options (green, red, blue) for status indication. Built for long-lasting use, it withstands vibration, shock, and humidity, with a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles.
MULTICOMP PRO MC010903 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC min between live parts and ground, 1000V AC min between terminals of same poles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MΩ Min. at 500V DC
- Operating Humidity: 45 to 85% RH (no condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to 50°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 200 m/s² operating, 500 m/s² damage
- Mechanical Life: 1,000,000 cycles (momentary), 250,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the multicomp U-2013 Reliable Vandal Resistant Switch for Industrial Applications
Experience durability and robust construction with this vandal resistant illuminated switch, designed for harsh environments. Suitable for indoor and outdoor settings, it features stainless steel material, IP67 protection, and multiple LED colors for clear status indication. Its high dielectric strength and vibration resistance ensure reliable operation over long periods, making it ideal for industrial control panels, outdoor installations, and security systems. Easy to install with a 16mm mounting hole, this switch guarantees long-lasting, dependable performance for demanding applications.
Get multicomp vandal resistant illuminated switch today—built for durability, outdoor use, and reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010903?
You can click on the BUY or RFQ button to purchase MC010903 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010903?
You can download the MC010903 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010903?
MULTICOMP PRO
