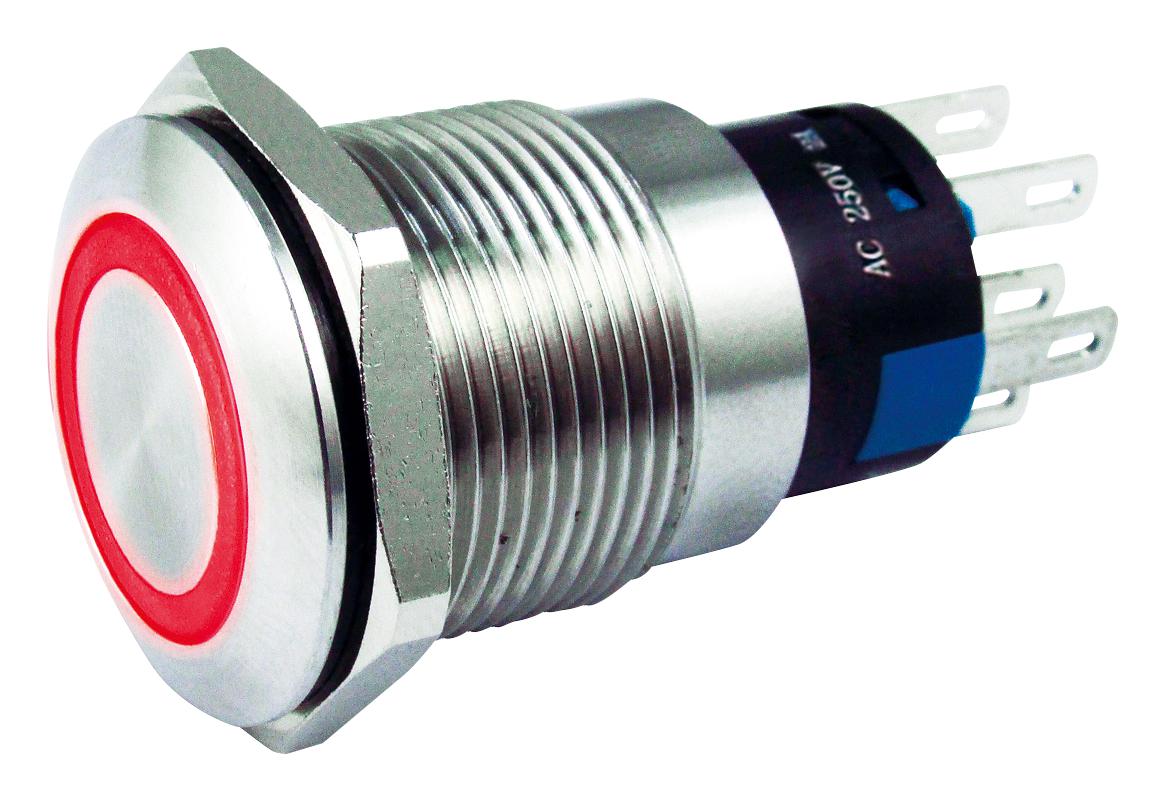

MULTICOMP PRO MC010919 Vandal Resistant Switch
This illuminated vandal-resistant switch features a durable stainless steel construction with options for flush or domed mounting. It supports various contact configurations including 1NO + 1NC, 2NO + 2NC, and 4NO + 1NC, with LED color options like red, green, and blue. Rated for 250V and 5A, it offers high dielectric strength, resistance to vibration and shock, and IP67 protection. Suitable for industrial environments requiring reliable switching with illumination, command signals, and vandal-resistance, this switch ensures durability and safety in harsh conditions.
MULTICOMP PRO MC010919 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: Maintained or Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals: 1,000V AC / min
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH
- Storage Temperature: -30°C to +80°C
- Operating Temperature: -25°C to +50°C
- Vibration Resistance: 5-55Hz, 0.5mm amplitude
- Shock Resistance: 200 m/S²
- Mechanical Life: 1,000,000 cycles (momentary), 250,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Itluminated Vandal Resistant Switch – Reliable Industrial Switch for Industrial Applications
Order the vandal resistant switch online today to benefit from its robust stainless steel body, IP67 protection, versatile contact configurations, and efficient illumination options. Designed for industrial environments, this switch guarantees reliable operation under vibration, shock, and extreme temperature conditions. Whether for automation, control panels, or safety systems, its durable construction and high dielectric strength ensure safety and long-lasting performance. Experience quick online purchasing and enhance your project with this dependable industrial switch suitable for demanding applications.
Buy Itluminated vandal-resistant switch now and experience unmatched durability, illumination, and reliability in harsh industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010919?
You can click on the BUY or RFQ button to purchase MC010919 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010919?
You can download the MC010919 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010919?
MULTICOMP PRO
