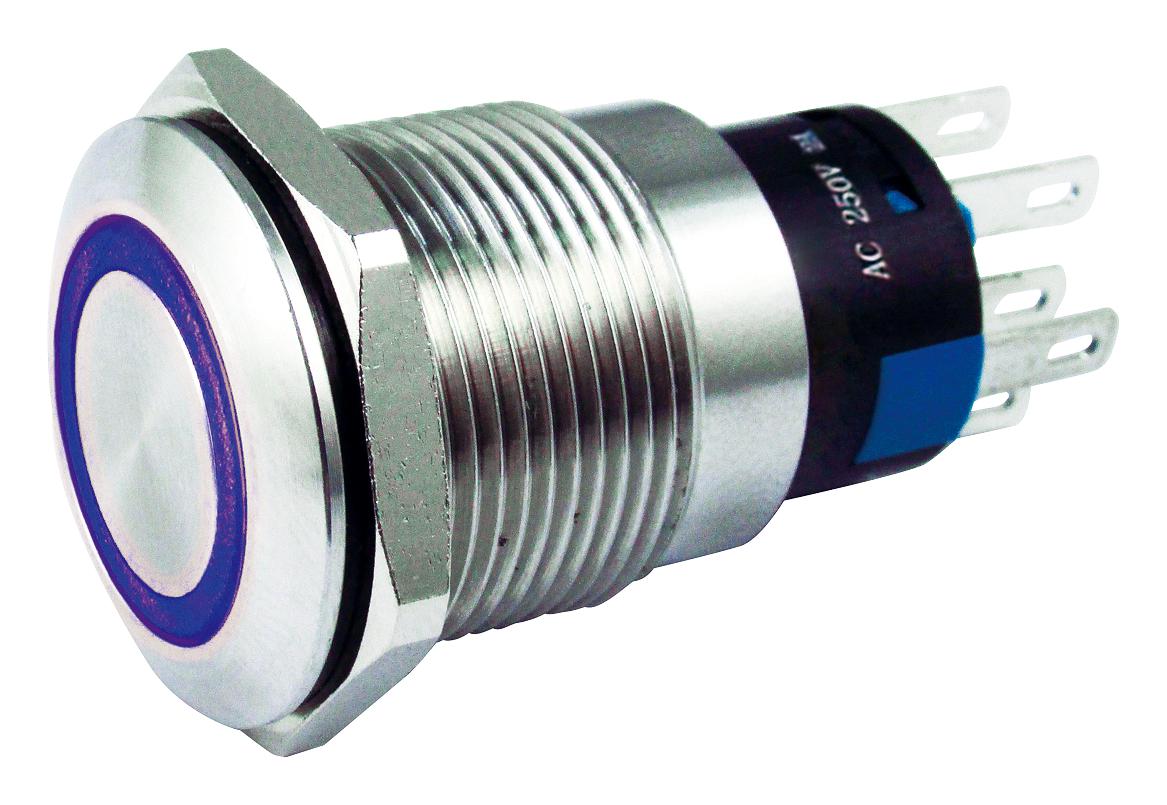

MULTICOMP PRO MC010920 Illuminated Vandal Switch
The illuminated vandal-resistant switch is designed for industrial environments requiring durability and reliability. Featuring LED illumination with colors like red, green, and blue, it is suitable for various control systems. Available in both momentary and maintained operation with contact configurations such as 1NO + 1NC and 2NO + 2NC, it offers IP67 protection for rugged use. Constructed from stainless steel, it withstands harsh conditions with high dielectric strength and resistance to vibration and shock, making it ideal for security and outdoor applications.
MULTICOMP PRO MC010920 Illuminated Vandal Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red, Green, Blue
- Switch Operation: Momentary / Maintained
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals: 1,000V AC / min
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: 200 m/S² operating limits; 500 m/S² damage limits
- Mechanical Life: 1,000,000 cycles (momentary), 250,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122 grams
Buy the ITluminated Vandal Resistant Switch – Reliable Control Switch for Industrial Applications
Purchase the rugged, illuminated vandal-resistant switch online today to enhance your control system’s durability and safety. Designed for industrial and outdoor use, it features IP67 protection, multiple LED color options, and high dielectric and mechanical resistance. Easy to install with solder terminals, it offers long mechanical and electrical life cycles, ideal for security, automation, and outdoor control panels. Buy now to ensure reliable operation in challenging environments and improve system performance with this durable switch.
Buy ITluminated vandal resistant switch now and experience unmatched reliability and performance in industrial control environments.
