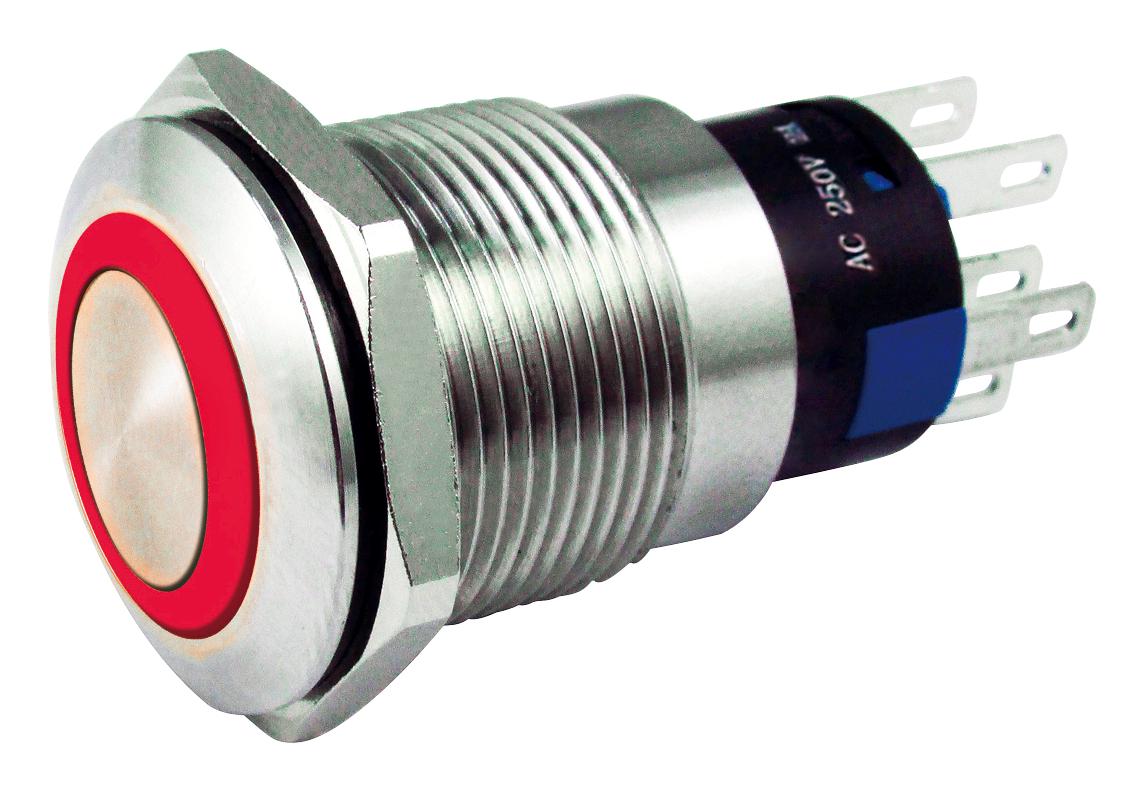

MULTICOMP PRO MC010928 Vandal Resistant Switch
This illuminated vandal resistant switch offers reliable operation with sleek design features including a durable stainless steel body, multiple contact configurations, and LED illumination in red, green, or blue. Available in flush and domed mount styles, it provides high dielectric strength, vibration and shock resistance, and IP67 protection. Suitable for industrial environments, it supports both maintained and momentary operations with a rated voltage of 250V and current of 5A, making it ideal for demanding control and safety applications.
MULTICOMP PRO MC010928 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits: 200 m/S²; Damage limits: 500 m/S²
- Mechanical Life: 1,000,000 cycles (Momentary), 250,000 cycles (Maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Itluminated Series Vandal Resistant Switch: MC010928
Order the Itluminated vandal resistant switch MC010928 online today and enhance your control systems with a durable, IP67-rated switch featuring LED illumination in red, green, or blue. This high-quality switch boasts stainless steel construction, both maintained and momentary operation options, and excellent dielectric strength, making it ideal for industrial and safety applications. Enjoy fast delivery and secure online purchasing for a reliable control component that withstands vibration, shock, and harsh conditions.
Buy Itluminated vandal resistant switch MC010928 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010928?
You can click on the BUY or RFQ button to purchase MC010928 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010928?
You can download the MC010928 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010928?
MULTICOMP PRO
