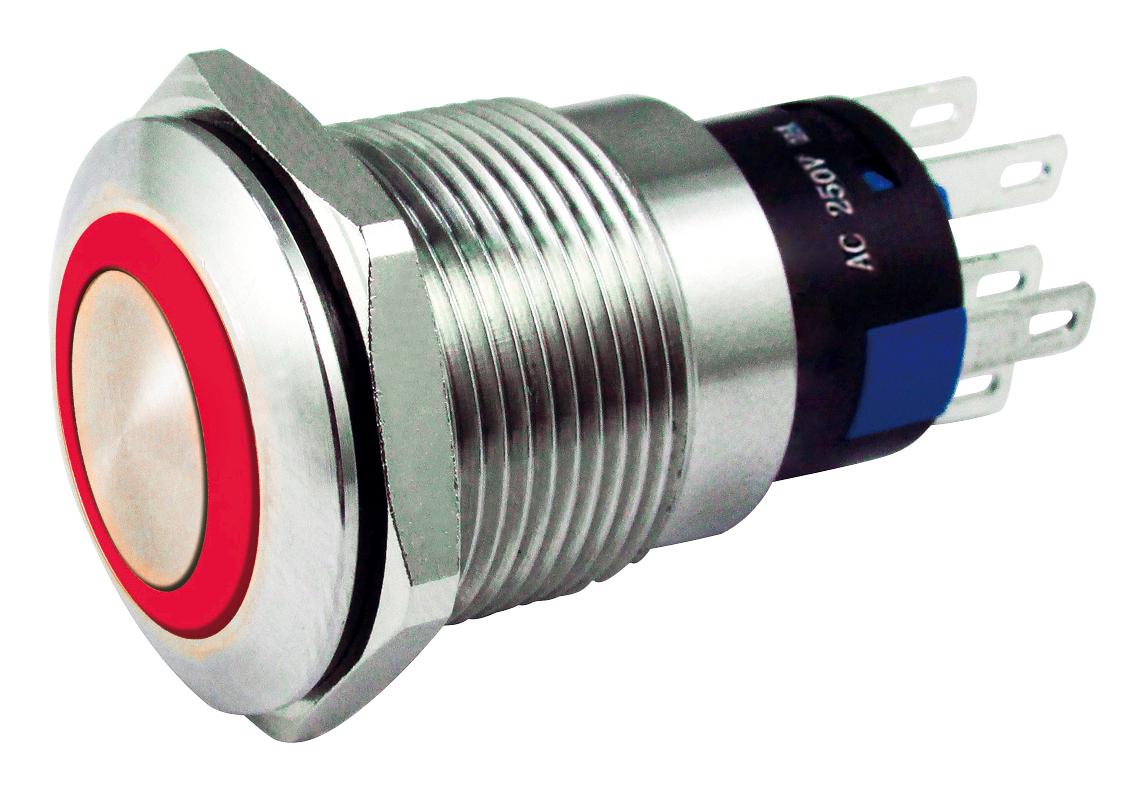

MULTICOMP PRO MC010931 Vandal Resistant Switch
This product features a durable, vandal-resistant illuminated switch available in both flush and domed designs suitable for various industrial and security applications. The switches support multiple contact configurations, including 1NO + 1NC, 2NO + 2NC, and 4NO + 1NC, with LED options in red, green, or blue. Rated at 250V and 5A, they offer high dielectric strength, corrosion resistance, and an IP67 degree of protection. Operating temperature ranges from -30°C to +80°C, ensuring reliable performance in demanding environments. Suitable for control panels, security systems, and outdoor equipment, these switches combine strength with visibility for enhanced safety and functionality.
MULTICOMP PRO MC010931 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: 1NO + 1NC / 2NO + 2NC / 4NO + 1NC (maintained or momentary)
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/S² (operating), 500 m/S² (damage limit)
- Mechanical Life: 1,000,000 cycles (momentary), 250,000 (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Buy Multicomp Vandal Resistant Switch Part Number MC010931 Online
Secure your project with the high-quality vandal-resistant illuminated switch available online. Designed for durability, these switches feature multiple contact configurations, vibrant LED indicators, and IP67 protection, suitable for outdoor and industrial environments. Easy to install with solder terminals, they support high dielectric strength and operate reliably in harsh conditions from -30°C to +80°C. Perfect for security panels, control systems, and outdoor equipment, ensure excellent visibility and long-lasting performance by purchasing online today.
Order your Multicomp SeriesMC010931 vandal resistant illuminated switch today and enhance your project’s safety and durability with reliable control components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010931?
You can click on the BUY or RFQ button to purchase MC010931 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010931?
You can download the MC010931 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010931?
MULTICOMP PRO
