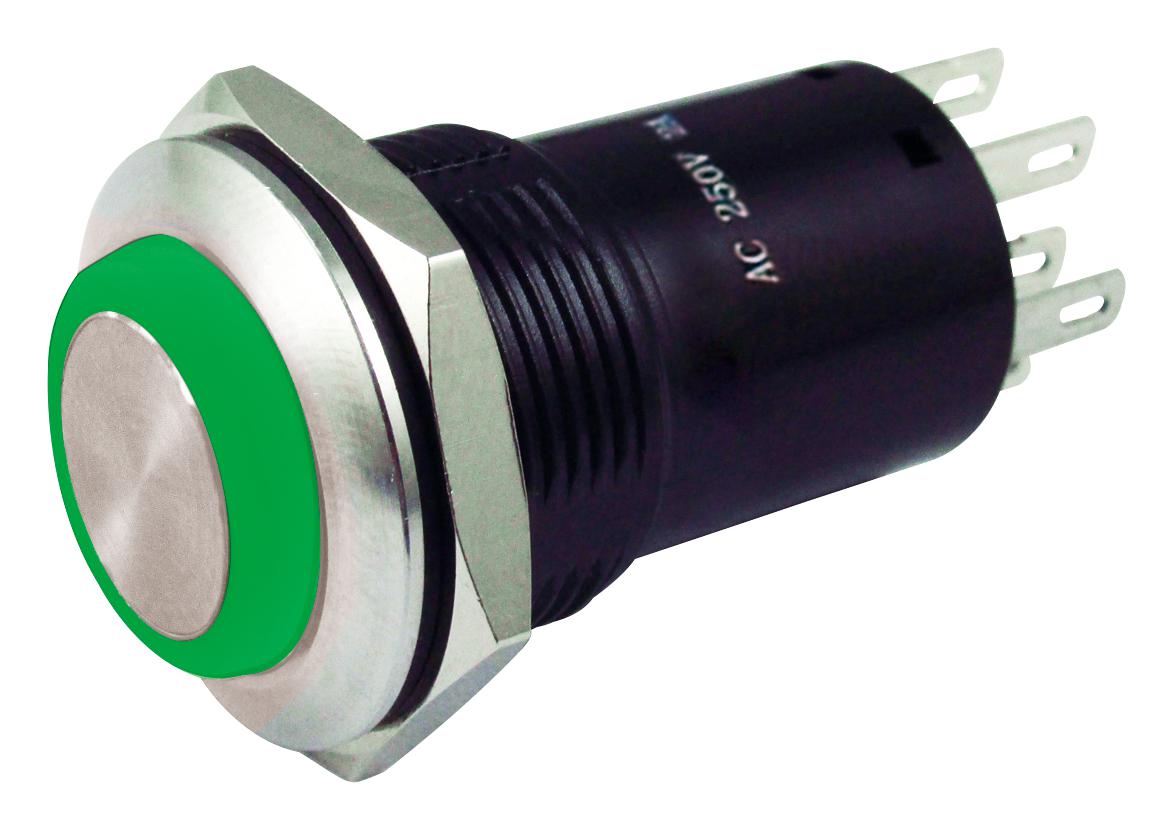

MULTICOMP PRO MC010936 Illuminated Vandal Switch
This prominent illuminated vandal resistant switch features various contact configurations including 1NO + 1NC, 2NO + 2NC, and 4NO + 1NC, with LED ring colors in blue, green, or red. Designed for mounting holes of 19mm, it is made of stainless steel with IP65 protection, suitable for harsh environments. It offers a rated voltage of 250V and current of 5A, with excellent dielectric strength, contact resistance, and insulation resistance. The switch operates reliably across wide temperature ranges from -25°C to +80°C, with high vibration and shock resistance, mechanical and electrical longevity, making it ideal for vandal-resistant applications where durability and visibility are critical.
MULTICOMP PRO MC010936 Illuminated Vandal Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue, Green, Red
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial), 100MΩ Min. (500V DC)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm, operating limits 200m/s²
- Shock Resistance: 500m/s² damage limits, 200m/s² operating limits
- Mechanical Life: 1,000,000 cycles (momentary), 100,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
- Terminal Width: 3x0.5mm
- Gasket and Hex Nut included
Buy the Buy Multicomp Illuminated Vandal Resistant Switch Part Number MC010936 Online
Purchase the Multicomp illuminated vandal resistant switch online today and experience reliable performance in harsh environments. Designed with stainless steel construction, IP65 protection, and multiple contact configurations, this switch offers exceptional durability and visibility thanks to its bright LED rings in blue, green, or red. Ideal for industrial, security, or outdoor applications, it withstands extreme temperatures, vibration, and shock while providing long-lasting mechanical and electrical life. Secure yours now for enhanced safety and vandal resistance.
Get Multicomp MC010936 today—built for vandal resistance with high durability and visibility for demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010936?
You can click on the BUY or RFQ button to purchase MC010936 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010936?
You can download the MC010936 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010936?
MULTICOMP PRO
