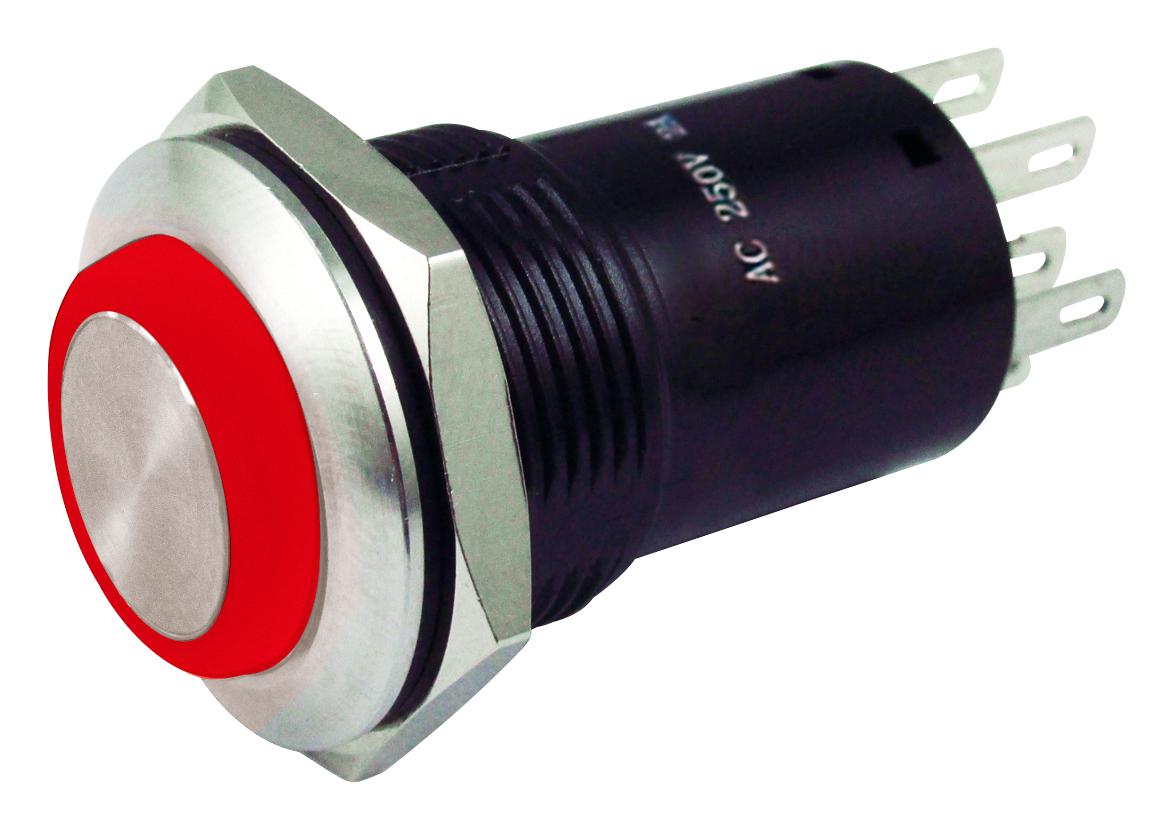

MULTICOMP PRO MC010937 Illuminated Vandal Resistant Switch
The illuminated vandal resistant switch is a durable, stainless steel push-button switch designed for harsh environments. It features LED illumination in blue, green, or red, with a clear top and prominent mount for easy installation in panels with 19mm diameter holes. This switch supports multiple contact configurations including 1NO + 1NC and 2NO + 2NC, with a rated voltage of 250V and current of 5A. It is IP65 rated for protection against dust and water, with high dielectric strength, vibration, and shock resistance, making it ideal for industrial, security, and outdoor applications. The switch combines robust construction with reliable electrical performance, ensuring long service life and safety.
MULTICOMP PRO MC010937 Illuminated Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue, Green, Red
- Switch Operation: Maintained or Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; between terminal of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits 500 m/S², Operating limits 200 m/S²
- Mechanical Life: Momentary 1,000,000 cycles, Maintained 100,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
- Terminal Width: 3x0. St
- Gasket: Included
- Hex Nut: Included
Buy the Buy Multicomp Vandal Resistant Illuminated Switch Part Number MC010937 Online
Order the durable, high-performance illuminated vandal resistant switch online today. Featuring LED illumination in red, green, or blue, IP65 rated for dust and water resistance, and multiple contact configurations, this stainless steel switch is ideal for industrial, outdoor, and security applications. With robust construction, high dielectric strength, vibration, and shock resistance, it ensures reliable operation in tough conditions. Secure your outstanding industrial control components online now to ensure long-lasting, dependable performance in demanding environments.
Buy Multicomp MC010937 now and experience unmatched durability, IP65 protection, and reliable performance for harsh environments.
