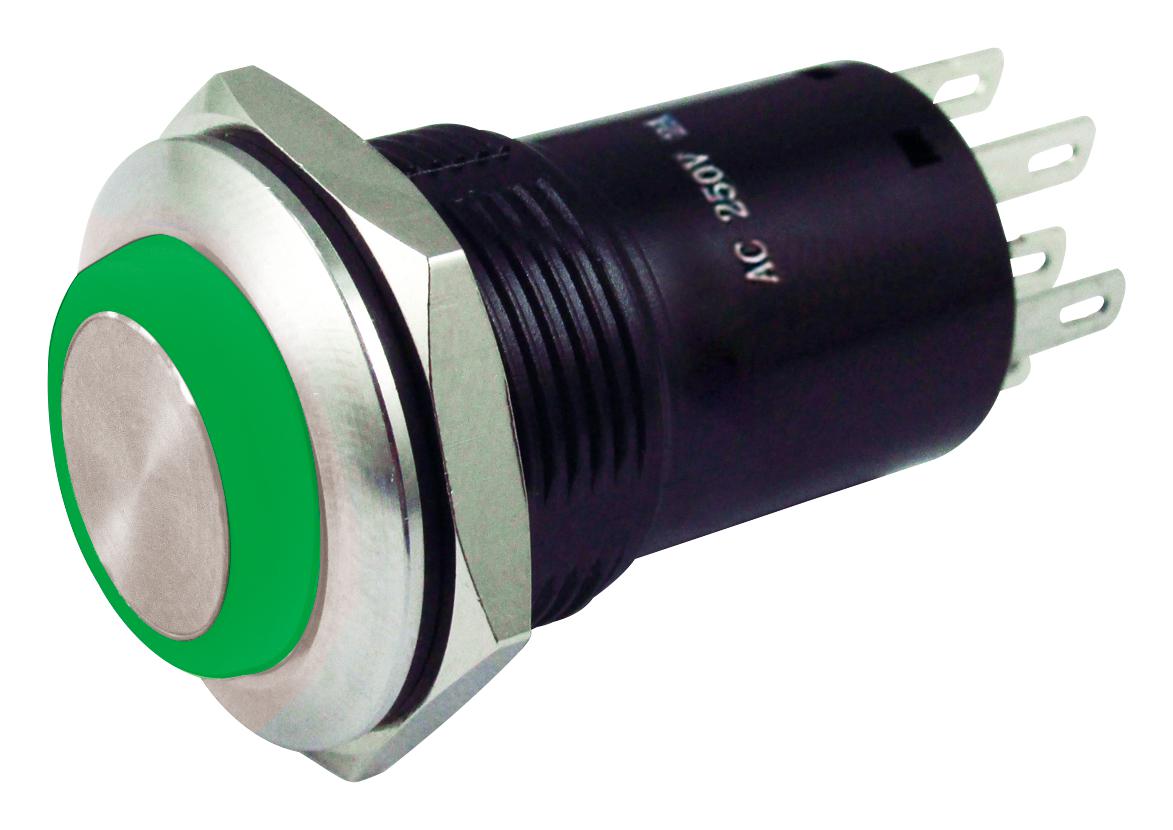

MULTICOMP PRO MC010939 Illuminated Vandal Resistant Switch
The illuminated vandal resistant switch features a 19mm mounting hole and stainless steel contact blocks with silver contacts, ideal for rugged environments. It is available with LED colors in blue, green, and red, and offers multiple contact configurations such as 1NO + 1NC, 2NO + 2NC, and 4NO + 1NC, suitable for various industrial control applications. The switch provides high dielectric strength, low contact resistance, and IP65 protection, ensuring durability against vandalism, vibration, and harsh conditions. It operates within a wide temperature range, with compliance to safety and electrical standards, making it a reliable choice for industrial, security, and automation systems.
MULTICOMP PRO MC010939 Illuminated Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue, Green, Red
- Switch Operation: Momentary or Maintained
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits: 200 m/S²; Damage limits: 500 m/S²
- Mechanical Life: Momentary: 1,000,000; Maintained: 100,000
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
Buy the Multicomp Series Illuminated Vandal Resistant Switch: MC010939
Order the multicomp Series illuminated vandal resistant switch today for rugged durability, versatile contact configurations, and IP65 protection. Ideal for industrial, security, and automation applications, this switch features stainless steel contact blocks, adjustable LED colors, and a high dielectric strength ensuring reliable operation in harsh environments. With a long mechanical and electrical life, low contact resistance, and wide temperature tolerance, it guarantees durability against vandalism, vibration, and extreme conditions. Enhance your control systems today with this robust, easy-to-install switch designed for demanding applications.
Get multicomp Series MC010939 illuminated vandal resistant switch today—built for durability, vandal resistance, and reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010939?
You can click on the BUY or RFQ button to purchase MC010939 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010939?
You can download the MC010939 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010939?
MULTICOMP PRO
