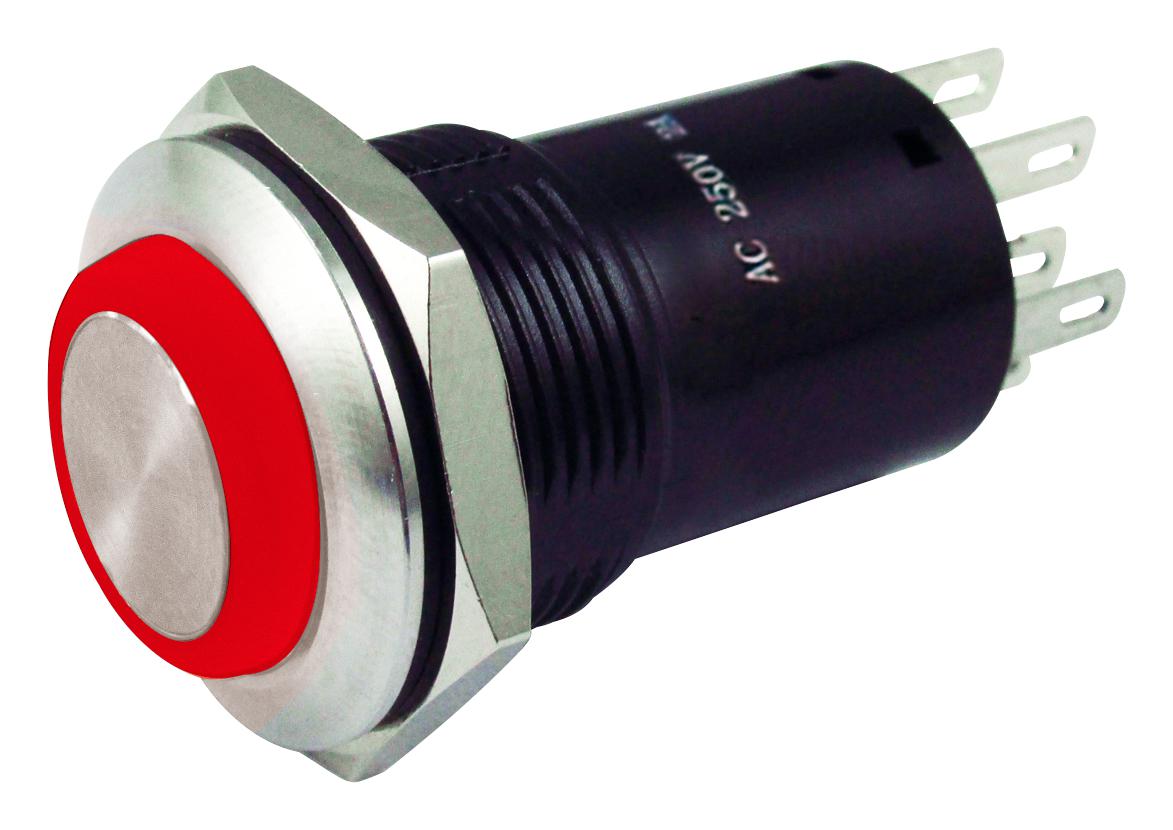

MULTICOMP PRO MC010940 Vandal Resistant Switch
The illuminated vandal resistant switch features a 19mm mounting hole, stainless steel construction, and multiple contact configurations including 1NO + 1NC, 2NO + 2NC, and 4NO + 1NC options. It is suitable for harsh environments with IP65 protection, operating temperature from -25°C to +50°C, and vibration resistance up to 5-55Hz. The switch includes LED indicators in blue, green, and red, and has high dielectric strength, low contact resistance, and a mechanical life of 1,000,000 cycles. Ideal for industrial applications requiring durability and reliable operation.
MULTICOMP PRO MC010940 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Blue, Green, Red
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial), 100mΩ Min. (500V DC)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits 200m/S², Damage limits 500m/S²
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
- Terminal Width: 3x0.5mm
- Gasket: Included
- Hex Nut: Included
Buy the Buy Multicomp Vandal Resistant Switch Part Number MC010940 Online
Purchase the high-durability vandal resistant switch online today and enjoy fast delivery. With multiple contact configurations, IP65 protection, and LED indicators, this switch is ideal for industrial applications demanding robustness and reliability. Its stainless steel construction, high dielectric strength, and vibration resistance ensure long-lasting performance under tough conditions. Whether you need maintained or momentary operation, this switch provides excellent mechanical and electrical longevity. Secure your supply now for dependable operation and peace of mind in your industrial projects.
Order your Multicomp SeriesMC010940 durable vandal resistant switch today and ensure reliable, high-quality performance in harsh industrial environments.
