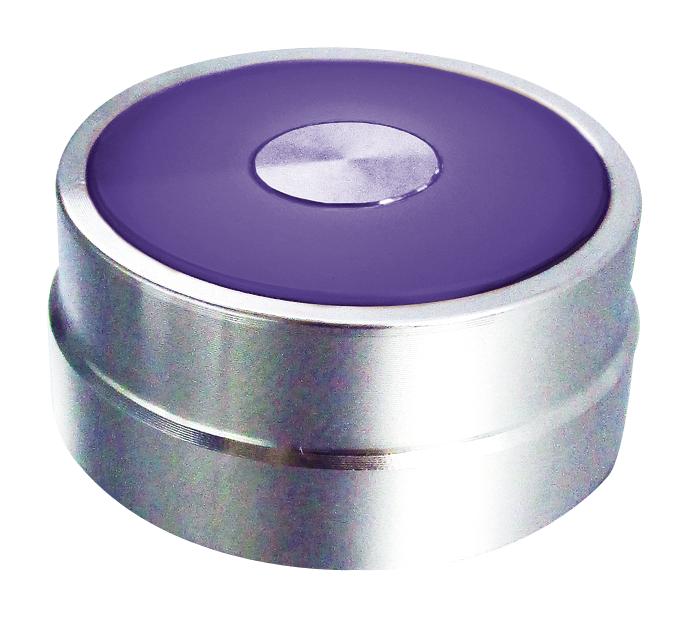

MULTICOMP PRO MC010968 Vandal Resistant Switch
The flush illuminated vandal-resistant switch features a durable metal bezel-ring design, rated for 600V and 210A, with LED lighting options in green, red, and blue. Its waterproof IP65 protection ensures reliable operation in harsh environments, with dielectric strength up to 2,000V AC. Suitable for various industrial and automation applications, it offers a high mechanical life of 1,000,000 cycles and electrical life of 100,000 cycles. Its compact 22.3mm or 30.5mm mounting hole size and contact block terminal style make installation flexible and secure, ideal for control panels and vandal-prone locations.
MULTICOMP PRO MC010968 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colors: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground 2,000V AC / min; between terminals of same poles 1,000V AC / min
- Contact Resistance: 50mΩ Max (Initial value)
- Insulation Resistance: 100MΩ Min (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: 100 m/s² damage limit
- Mechanical Life: 1,000,000 cycles (momentary), 100,000 cycles (maintained)
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
- Mounting Hole Diameter: 22mm / 30mm
Buy the Buy Multicomp Pro Vandal Resistant Switch Part Number MC010968 Online
Purchase the high-quality vandal-resistant switch from Multicomp Pro today. Its IP65 waterproof design, durable aluminium construction, and multiple LED color options ensure excellent performance in industrial applications. Whether for control panels or vandal-prone locations, this switch offers a reliable solution with a long mechanical and electrical lifespan. Easy to install with a compact 22.3mm or 30.5mm mounting hole, it guarantees safety, durability, and efficiency in demanding environments. Order now for fast online delivery and enhanced control system safety.
Buy Multicomp Pro MC010968 now and experience unmatched reliability and high durability in vandal-prone environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010968?
You can click on the BUY or RFQ button to purchase MC010968 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010968?
You can download the MC010968 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010968?
MULTICOMP PRO
