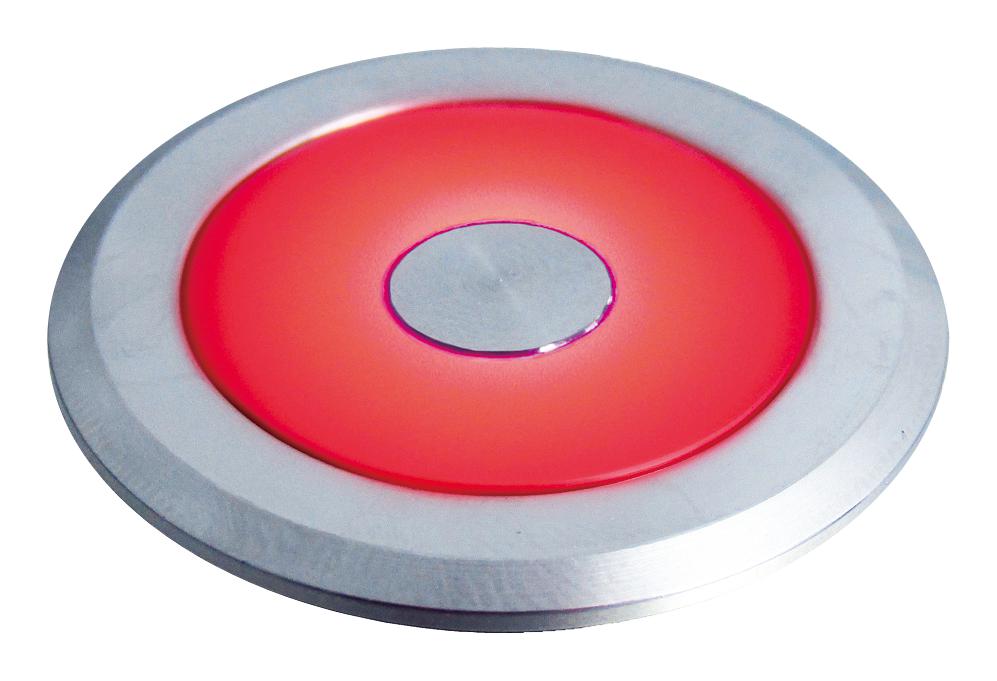

MULTICOMP PRO MC010985 Vandal Resistant Switch
The flush illuminated vandal resistant switch is designed with a metal bezel-ring and silhouette-ring for enhanced durability and vandal resistance. Suitable for mounting hole diameters of 22mm and 30mm, it features silver contact blocks, various LED color options (Green, Red, Blue), and an IP65 degree of protection. Rated for 600V and 210A, with a dielectric strength of 2,000V AC between live parts and ground, it provides reliable operation in industrial environments. Its rugged construction ensures longevity with a mechanical life of 1,000,000 cycles and electrical life of 100,000 cycles, making it ideal for harsh conditions.
MULTICOMP PRO MC010985 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to 55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 100 m/s² operating, 1,000 m/s² damage
- Mechanical Life: 1,000,000 cycles (Momentary), 100,000 cycles (Maintained)
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Pro MC010985 – Reliable Vandal-Resistant Switch for Industrial Applications
Upgrade your industrial control panels with the strong and reliable vandal resistant illuminated switch. Designed for harsh environments, this switch offers high durability, multiple LED color options, and IP65 protection, ensuring long-lasting performance. Its rugged aluminium construction and high electrical ratings make it suitable for demanding industrial applications. Easily install with mounting diameters of 22mm or 30mm. Purchase this high-quality switch online now to ensure your automation and control systems operate smoothly and securely in challenging environments.
Order your Multicomp Pro MC010985 vandal-resistant illuminated switch today and enhance your industrial safety and control systems with dependable quality.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010985?
You can click on the BUY or RFQ button to purchase MC010985 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010985?
You can download the MC010985 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010985?
MULTICOMP PRO
