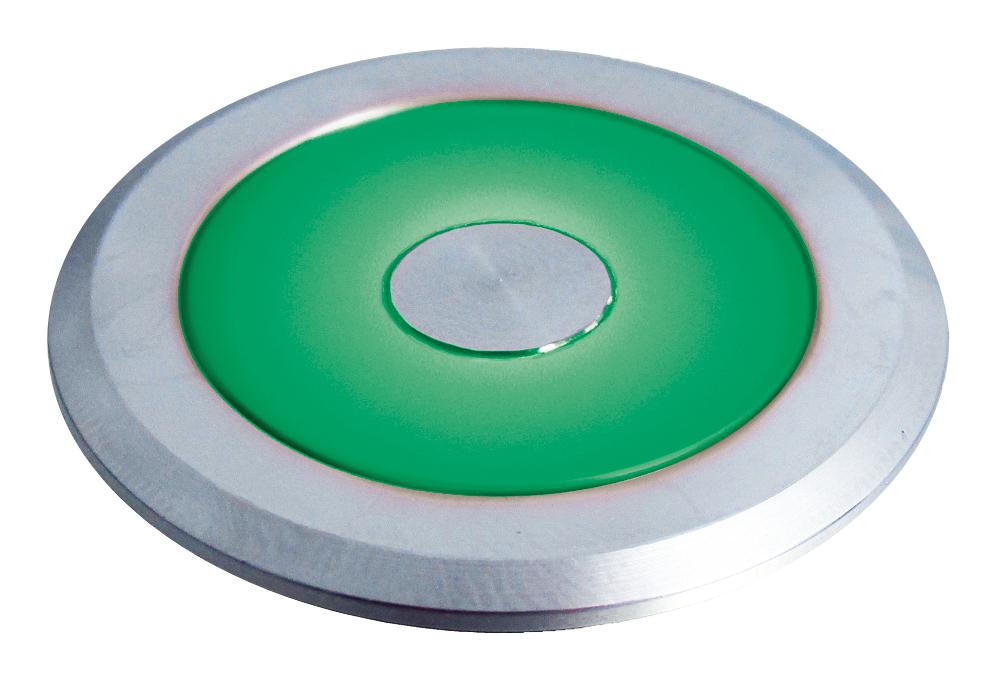

MULTICOMP PRO MC010987 Vandal Resistant Switch
The flush illuminated vandal resistant switch features metal bezels and silhouettes, designed for durability and vandal resistance. It is suitable for panels with mounting holes of 22mm or 30mm, and includes LED illumination options in green, red, and blue. The switch withstands up to 600V and 210A, with high dielectric strength (2000V AC between live parts and ground), and offers a long mechanical life of 1 million cycles. Ideal for industrial environments requiring robust, weatherproof, and vandal-proof switch solutions with IP65 protection, suitable for various control applications.
MULTICOMP PRO MC010987 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100 MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to 55°C
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: 1,000 m/s² damage limit; 100 m/s² operating limit
- Mechanical Life: 1,000,000 (momentary), 100,000 (maintained)
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the MultiComp Series Vandal Resistant Switch: MC010987
Order the vandal-resistant switch online today to ensure robust performance in demanding environments. Designed with metal bezels and IP65 protection, this switch features LED illumination in green, red, or blue. It supports a rated voltage of 600V and a current of 210A, offering long-lasting mechanical cycles up to 1 million. Perfect for industrial applications requiring vandal-proof, waterproof, and high dielectric strength switches, providing reliable operation under harsh conditions.
Get MultiComp MC010987 today—built for durability with vandal-proof design and LED illumination for industrial control systems.
