MULTICOMP PRO MC010992 Vandal Resistant Switch

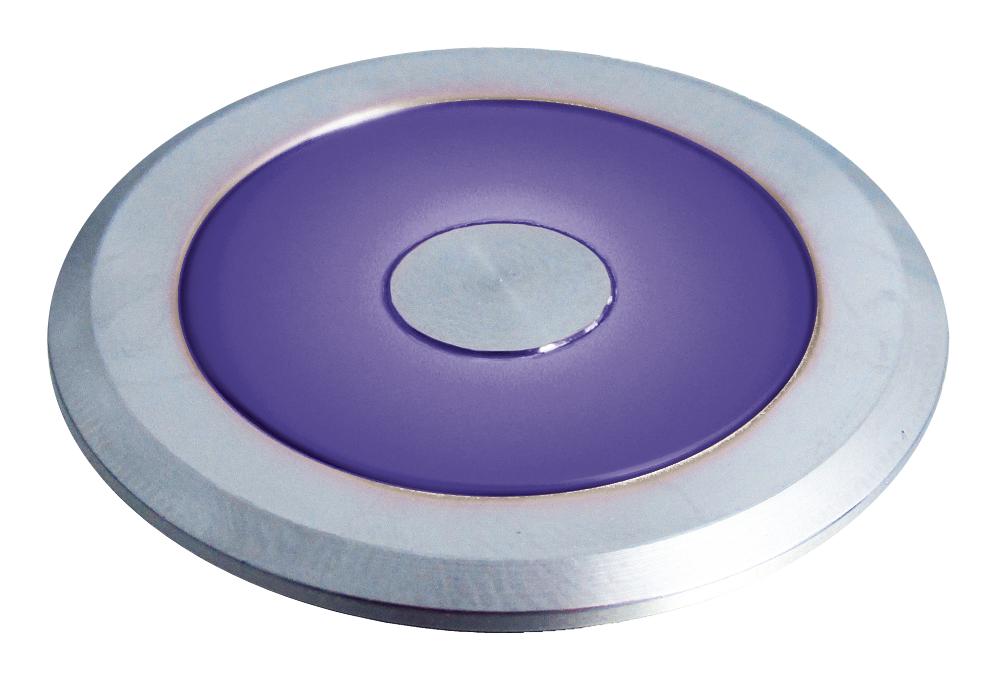

The Flush Illuminated Vandal Resistant Switch is a durable, metal bezel-ring switch designed for harsh environments with IP65 protection. It features a flush mount top suitable for hole diameters of 22mm or 30mm, with LEDs available in green, red, and blue. Rated for 600V and 210A, it offers high dielectric strength and insulation resistance, ensuring safety and reliability. Built with silver contact blocks, it withstands vibrations, shocks, and temperature fluctuations, making it ideal for industrial automation, control panels, and vandal-proof installations with a long mechanical and electrical lifespan.
MULTICOMP PRO MC010992 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC between live parts and ground; 1000V AC between terminals of same poles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy multicomp Resistant Switch Part Number MC010992 Online
Enhance your industrial control systems with the vandal resistant switch, featuring a durable metal bezel and IP65 protection. With rated voltage of 600V and current of 210A, it ensures long-term reliability even in challenging environments. Its LED indicators are available in green, red, and blue for clear status visibility. Designed for applications requiring high dielectric strength, insulation resistance, and shock resistance, this switch is perfect for security, automation, or vandal-proof installations. Buy online today for dependable performance and easy integration into your projects.
Order your multicomp Resistant Switch part number MC010992 today and ensure robust security and control with this high-quality vandal-proof switch.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010992?
You can click on the BUY or RFQ button to purchase MC010992 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010992?
You can download the MC010992 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010992?
MULTICOMP PRO
