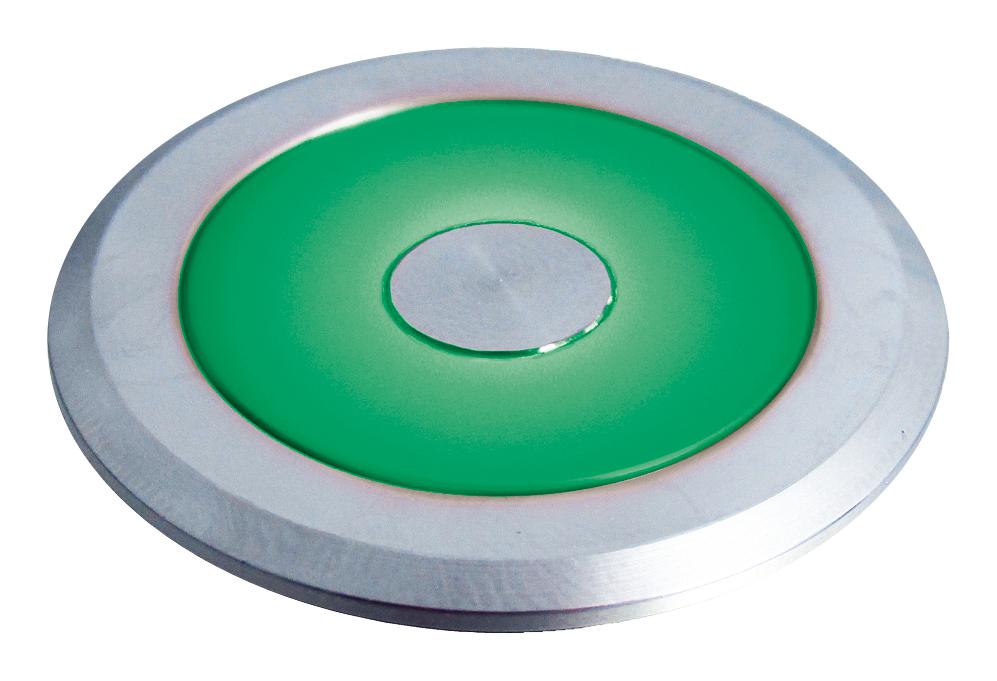

MULTICOMP PRO MC011002 Vandal Resistant Switch
The flush illuminated vandal resistant switch is designed for durable industrial applications with a metal bezel-ring and silhouette-ring options. It features a high IP65 protection rating, a voltage capacity of 600V, and a current rating of 210A. The switch has illuminated LED indicators with options for green, red, or blue colors, operating from 12V AC/DC. Constructed from aluminum, it withstands harsh environments, with dielectric strength of 2000V AC between live parts and ground. Suitable for control panels, automation, and vandal-resistant installations, it offers long mechanical and electrical life with vibration and shock resistance.
MULTICOMP PRO MC011002 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminum
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary: 1,000,000 cycles, Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Pro Flush Illuminated Vandal Resistance Switch Part Number MC011002 Online
Secure your control panels with this high-quality vandal resistant switch featuring LED illumination and IP65 protection. Rated for 600V and 210A, it ensures durability and reliable operation in harsh environments. Made from durable aluminum, it withstands vibrations and shocks with a long mechanical and electrical lifespan. Easy to install with 22mm mounting holes, this switch offers green, red, or blue LED indicators, making it ideal for industrial automation, security systems, and vandal-proof installations. Purchase online today for fast delivery and dependable performance.
Buy Multicomp Pro MC011002 now and experience unmatched reliability and long-lasting performance for vandal-resistant control applications.
