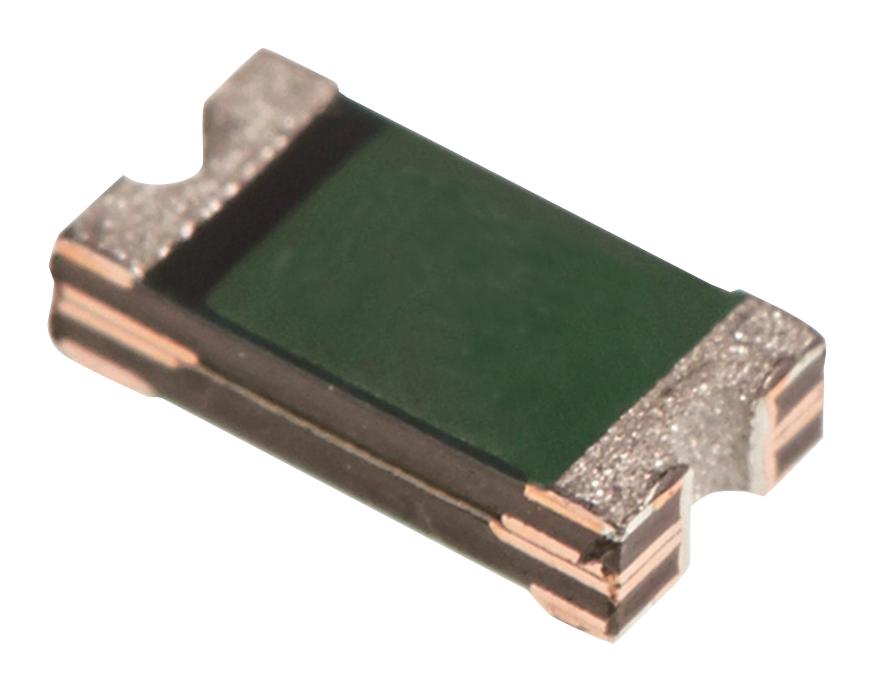

MULTICOMP PRO MC011013 Surface Mount PTC Fuse
The surface mountable PTC resettable fuse from Multicomp offers reliable overcurrent protection for high-density electronic boards. Featuring a small form factor, solid state design, and a fast trip time, it ensures quick response to overcurrent conditions. The fuse operates within a temperature range of -40°C to 85°C, is halogen-free, and has low resistance characteristics. Designed with pure tin termination pads, this fuse is suitable for reflow soldering, meeting industry standards for safety and performance, ideal for compact electronic and industrial applications.
MULTICOMP PRO MC011013 Surface Mount PTC Fuse Specifications:
- Hold current: 0.2A to 0.5A
- Trip current: 0.4A to 0.75A
- Voltage: 8V to 30V
- Resistance: Max 0.15 ohms
- Power dissipation: Up to 0.7W
- Temperature range: -40°C to 85°C
- Terminals: Pure Tin
- Dimensions: Length 3mm, width 1.5mm to 1.8mm, height 0.25mm to 0.55mm
- Soldering: Meets EIA RS 186-9E, ANSI/J-std-002 Category 3
- RoHS compliant, Halogen free
- Reflow profile: Max peak temperature 260°C, ramp-up rate 3°C/sec
Buy the Multicomp Series 1206 PTC Resettable Fuse: MC011013
Purchase the Multicomp surface mountable PTC resettable fuse MC011013 online today for reliable overcurrent protection. Its compact size and fast trip response make it perfect for high-density electronic boards. Designed for reflow soldering, it features a low resistance, wide temperature range, and RoHS compliance. Ideal for industrial and electronic applications, this fuse maximizes safety and durability. Order now to ensure your circuits are protected with high-quality, easy-to-install safety components that meet industry standards for performance and reliability.
Get Multicomp MC011013 today—built for precision and long-lasting durability in overcurrent protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011013?
You can click on the BUY or RFQ button to purchase MC011013 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011013?
You can download the MC011013 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011013?
MULTICOMP PRO
