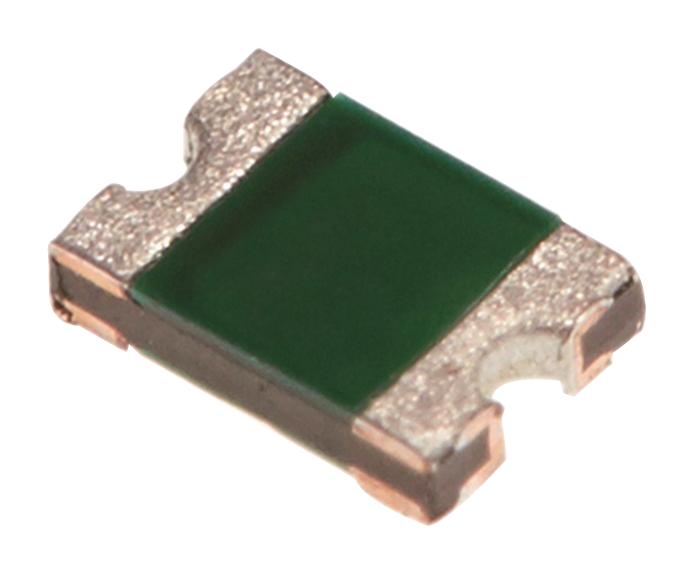

MULTICOMP PRO MC011419 Surface Mountable PTC Fuse
The surface mountable PTC resettable fuse in 0805 package is suitable for high-density electronic boards, offering solid-state overcurrent protection. It features fast trip times, low resistance, and operation limits from 0.1A to 1.1A with a maximum voltage of 24V DC. Its broad temperature range from -40°C to +85°C and halogen-free design make it versatile and eco-friendly. Designed with pure tin terminal pads for reliable soldering, this fuse meets industry standards for RoHS compliance, ensuring safety and sustainability in electronic assemblies.
MULTICOMP PRO MC011419 Surface Mountable PTC Fuse Specifications:
- Package: 0805 surface mount
- Operation Current: 0.1A to 1.1A
- Maximum Voltage: 6V to 24V DC
- Trip Time: Typical 0.2 to 0.85 seconds at 23°C
- Resistance: Min. 0.05Ω, Max. 0.7Ω after trip at 23°C
- Operating Temperature Range: -40°C to +85°C
- Terminal Pad Material: Pure Tin
- Soldering: Meets EIA RS 186-9E, ANSI/J-std-002 Category 3 standards
- Physical Dimensions: Length 2mm min, 23mm max; Width 1.2mm min, 1.5mm max; Height 0.2mm min, 0.6mm max
- RoHS compliant, Halogen free, Suitable for high-density boards
Buy the Premier Series PTC Fuse: MC011419
Order the Premier Series Surface Mountable PTC Fuse MC011419 online today to ensure your electronic circuits are protected with fast, reliable overcurrent protection. This 0805 package fuse features a wide current range of 0.1A to 1.1A and supports voltages up to 24V DC, making it ideal for high-density and compact electronic boards. Its solid-state design offers quick trip times, low resistance, and durability over a wide temperature range. Secure your electronics with a RoHS-compliant, halogen-free fuse that guarantees safety and environmental friendliness for your application.
Buy Premier Series PTC Fuse MC011419 now and experience reliable overcurrent protection for your electronic designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011419?
You can click on the BUY or RFQ button to purchase MC011419 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011419?
You can download the MC011419 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011419?
MULTICOMP PRO
