MULTICOMP-PRO MC1703F8 UHF Coaxial Connector
The UHF coaxial crimp connector is designed for use with RG58, RG58A, and RG141A cables. It features a nickel-plated brass contact for durability and reliable connection. The connector employs a crimp termination method, includes PTFE insulation for improved performance, and supports frequencies up to 300 MHz. Suitable for RF communication applications. Please note that current market demand may cause delays in delivery times, and the product is excluded from discounts. It comes with a 12-month limited warranty.
MULTICOMP-PRO MC1703F8 UHF Coaxial Connector Specifications:
- Connector Type: UHF Coaxial
- Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50Ω
- Contact Material: Brass
- Contact Plating: Nickel
- Frequency Max.: 300MHz
- Connector Mounting: Cable
- Cable Diameter Max.: 26.5mm
- Coaxial Type: RG58, RG58A, 141A
- External Length / Height: 75mm
- Insulation Resistance: 500MQ
- Insulator Material: PTFE
- Thread Size: 5/8" - 24 UNEF
- Working Voltage: 500V
- Bodies: Brass per JIS-C3604
- Centre Contact: Brass per JIS-C3604
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Crimp Ferrule: Brass per JIS-C2700
- Materials: Body Brass Nickel 100% Min, Insulation POM, Insulation II None, Washer Shell Brass Nickel 100% Min
- Stripping Dimension: 24.5 +0.4 mm

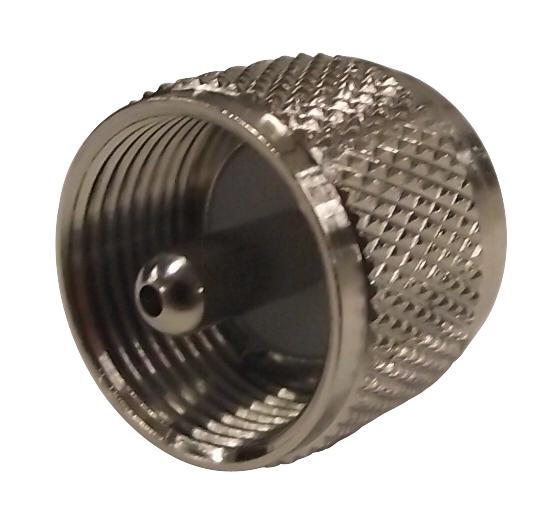

Buy the Buy Multicomp Series UHF Crimp Connector Part Number MC1703F8 Online
Secure your RF communication setups by purchasing the high-quality UHF coaxial crimp connector online. Compatible with RG58, RG58A, and RG141A cables, it features nickel-plated brass contacts for excellent durability and reliable connection. The crimp termination method ensures secure attachment, while PTFE insulation provides excellent electrical performance up to 300 MHz. This connector is ideal for a wide range of RF applications, offering robust construction and easy installation. Order now for fast delivery and professional-grade results in your projects.
Order your Multicomp Series MC1703F8 UHF Crimp Connector today and ensure reliable RF connections for your projects with high durability and performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC1703F8?
You can click on the BUY or RFQ button to purchase MC1703F8 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1703F8?
You can download the MC1703F8 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC1703F8?
MULTICOMP-PRO
