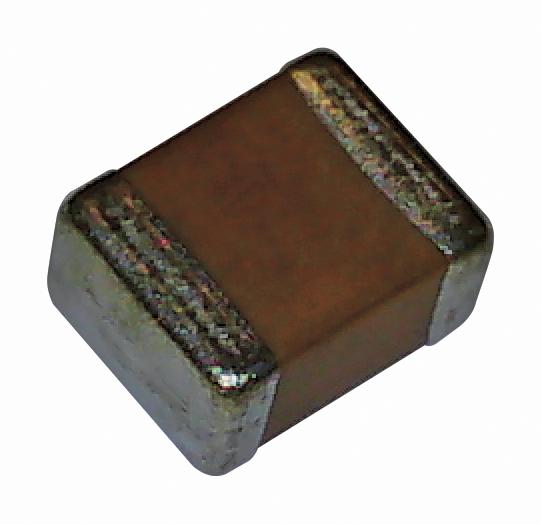

MULTICOMP-PRO MC1812B223K631CT High Voltage Ceramic Capacitor
This high-voltage multilayer ceramic capacitor series is designed with a special internal electrode pattern to distribute voltage and reduce concentration. Available in sizes from 0603 to 1812, it offers high stability, reliability, and capable of handling voltage ratings from 200V up to 3kV with dielectrics like NPO, X7R, and Y5V. Suitable for applications such as high-frequency snubbers, DC blocking, and DCDC converters, these capacitors feature RoHS compliance and are optimized for reflow soldering with various termination types and packaging options. Proper storage and handling ensure maximum performance and longevity.
MULTICOMP-PRO MC1812B223K631CT High Voltage Ceramic Capacitor Specifications:
- Size range: 0603 to 1812 (mm: 1.6x0.8 to 4.5x2.0)
- Rated voltage: 200V to 3000V
- Capacitance: 0.5pF to 8.2μF depending on dielectric and size
- Dielectrics: NPO, X7R, Y5V
- Capacitance tolerance: ±0.25pF, ±0.5pF, ±2%, ±5%, ±10%, ±20%
- Operating temperature: -55°C to +125°C (NPO), -55°C to +125°C (X7R), -25°C to +85°C (Y5V)
- Insulation resistance: ≥ 21 GΩ or R x C (smaller value)
- Dielectric strength: 500V to 999V (1.5x VDC)
- Soldering: Reflow only recommended with specific profiles
- Terminations: Ni/Sn, Ag/Ni/Sn (partial NPO) for surface mounting
Buy the Multicomp 1812B223K631CT – Reliable High Voltage Ceramic Capacitor for Industrial Applications
Order the reliable high voltage ceramic capacitors online today. Perfect for power converters, high-frequency snubbers, and filtering. Our capacitors offer excellent stability, broad voltage ratings up to 3kV, and are RoHS compliant. Suitable for surface-mount applications, they come in sizes from 0603 to 1812 with dielectrics such as NPO, X7R, and Y5V. Ensure optimal performance by selecting the right capacitance and voltage. Shop now for fast delivery and trusted quality for your engineering projects.
Buy Multicomp 1812B223K631CT now and experience unmatched reliability and performance in high-voltage power and signal filtering.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC1812B223K631CT?
You can click on the BUY or RFQ button to purchase MC1812B223K631CT from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1812B223K631CT?
You can download the MC1812B223K631CT datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC1812B223K631CT?
MULTICOMP-PRO
