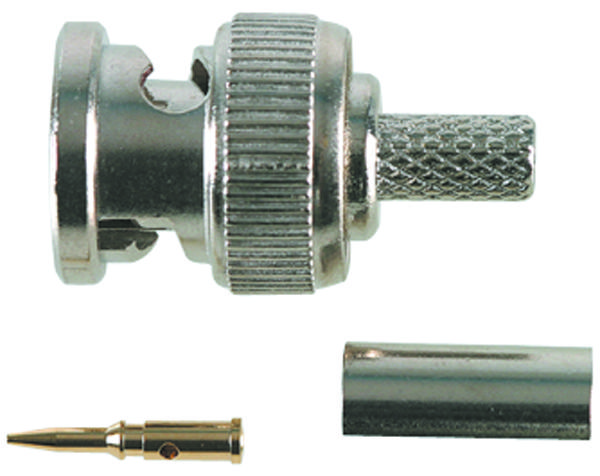

MULTICOMP PRO MC23569 RF Connector
The MC23569 is a high-quality straight BNC connector ideal for RF coaxial cable applications, including RF communications and industrial use. Crafted with a nickel-plated brass body, it features a gold-plated brass center contact and PTFE insulator for excellent signal integrity and durability. Designed for crimping onto RD316U cables, it supports a maximum VSWR of 1.3 and operates effectively within a temperature range of -65°C to 165°C. Its robust construction ensures reliable performance in demanding environments, making it a trusted choice for professionals and technicians alike.
MULTICOMP PRO MC23569 RF Connector Specifications:
- Material: Brass per JIS-C3604
- Finish: Nickel plating 100 μm minimum
- Center Contact: Gold-plated Brass
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Crimp Ferrule: Brass with hex. crimp tool of 3.9 (0.154), opc. for RD316U cables
- Operating Temperature Range: -65°C to +165°C
- VSWR: 1.3 maximum
- Frequency Range: DC-4 MHz
- Impedance: 50 ohms
- Dimensions: Body diameter approximately 8.4 mm
- Cable Attachment: Outer crimp, inner solder/crimp
- RoHS Compliant
Buy the Multicomp Series RF Connector: BNC Straight Plug MC23569
Order the Multicomp BNC Straight Plug MC23569 online today and enjoy fast shipping and trusted quality. Perfect for professional RF systems requiring durable, high-performance coaxial connectors. Its nickel-plated brass body ensures corrosion resistance, while the gold-plated brass center contact guarantees superior signal transfer. Designed for crimping onto RD316U cables, this connector operates efficiently across a wide temperature range of -65°C to 165°C. Whether for industrial or communication equipment, this reliable BNC connector ensures fit and performance, making your assembly process seamless and effective.
Buy Multicomp BNC Straight Plug MC23569 now and experience unmatched reliability and performance in RF coaxial connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC23569?
You can click on the BUY or RFQ button to purchase MC23569 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC23569?
You can download the MC23569 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC23569?
MULTICOMP PRO
