MULTICOMP PRO MC24178 Blue LED
This blue through-hole LED operates at 20mA with a forward voltage of 3.5V, emitting light at 473nm wavelength. Designed for reliable performance, it features a luminous intensity of around 300 mcd at 20mA, with a viewing angle of approximately 61/2 degrees. It can handle peak forward currents of 100mA for brief pulses and has an operating temperature range from -25°C to +80°C. The LED complies with RoHS standards, making it suitable for various electronic applications requiring strong blue illumination and durability.
MULTICOMP PRO MC24178 Blue LED Specifications:
- Luminous Intensity: approximately 300 mcd at 20mA
- Viewing Angle: 61/2 degrees
- Peak Emission Wavelength: 473 nm
- Dominant Wavelength: 468-473 nm
- Spectral Line Half-Width: 25 nm
- Forward Voltage: 3.5 V (typical)
- Peak Forward Current: 100mA (1/10 duty cycle)
- Continuous Forward Current: 30mA
- Reverse Voltage: 5 V Max.
- Power Dissipation: 120 mW Max.
- Operating Temperature Range: -25°C to +80°C
- Storage Temperature Range: -40°C to +100°C
- Lead Spacing: measured at lead emergence
- Material: Water Clear Blue lens, RoHS compliant
- Lead Soldering Temperature: 260°C for 5 seconds
- Soldering and packaging details included

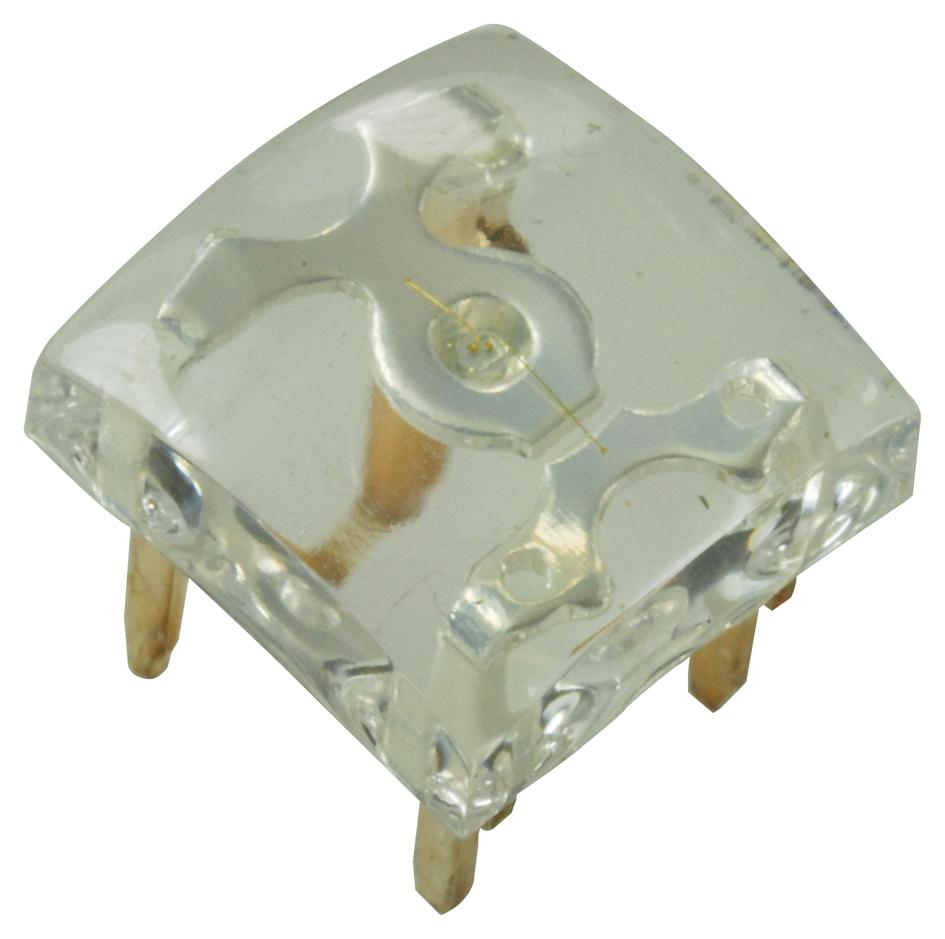

Buy the Buy multicomp Blue LED Part Number MC24178 Online
Purchase the multicomp Blue LED MC24178 online for your electronic projects. This through-hole LED provides 20mA current, 3.5V forward voltage, and 473nm wavelength. Its high luminous intensity of about 300 mcd and a viewing angle of 61/2 degrees ensure vibrant blue light. Suitable for illumination, signaling, and indicator applications, it features RoHS compliance and robust temperature handling from -25°C to +80°C. Easy to install and solder, perfect for DIY and professional electronic setups, ensuring high performance and durability.
Order your multicomp SeriesMC24178 Blue LED today and enhance your electronic projects with reliable blue illumination at 473nm wavelength.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24178?
You can click on the BUY or RFQ button to purchase MC24178 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24178?
You can download the MC24178 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24178?
MULTICOMP PRO
