MULTICOMP-PRO MC24341 PCB Barrier Terminal Block
The MC24341 is a 10-pole, 20A PCB barrier terminal block ideal for industrial use. It features brass contacts, tin-plated brass terminals, and a black PC insulator. With a pitch of 11mm and #6-32 Ni-plated steel screws, it supports wire ranges from 12 to 22 AWG. Operating within -40°C to 105°C, it provides insulation resistance over 2000 MΩ at 500 VDC, and a screw torque of 12 lb-in. Its durable construction ensures reliable connections in rugged environments, complying with RoHS standards for environmentally conscious manufacturing.
MULTICOMP-PRO MC24341 PCB Barrier Terminal Block Specifications:
- Pole count: 10
- Current Rating: 20A
- Voltage Withstand: 2000V for 1 min.
- Insulation Resistance: >2000 MΩ at 500 VDC
- Operating Temperature: -40°C to +105°C
- Material: Brass, Tin plated
- Insulator: Black plastic
- Screw: #6-32 nickel-plated steel
- Pitch: 11mm
- Wire Range: 12-22 AWG
- Screw Torque: 12 lb-in
- RoHS Compliant

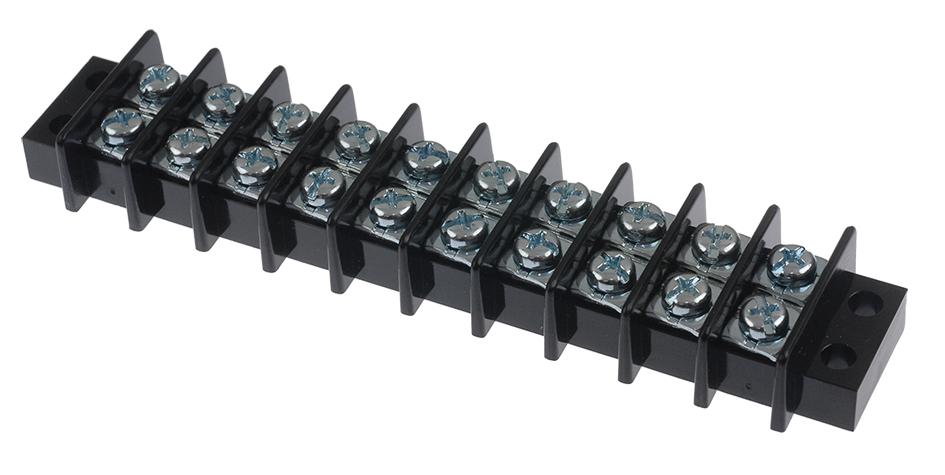

Buy the Buy Multicomp PCB Barrier Terminal Block Part Number MC24341 Online
Enhance your industrial wiring with the PCB Barrier Terminal Block offering 10 poles, 20A current capacity, and durable brass contacts. Designed for dependable connections, it features a black insulator and #6-32 steel screws. With an 11mm pitch and wire range from 12 to 22 AWG, it operates safely from -40°C to 105°C. It provides high insulation resistance of over 2000 MΩ at 500 VDC and is RoHS compliant, ensuring eco-friendly manufacturing and long-lasting performance for your electrical assemblies.
Buy Multicomp MC24341 now and experience reliable, high-quality terminal connections for industrial wiring and panel applications.
