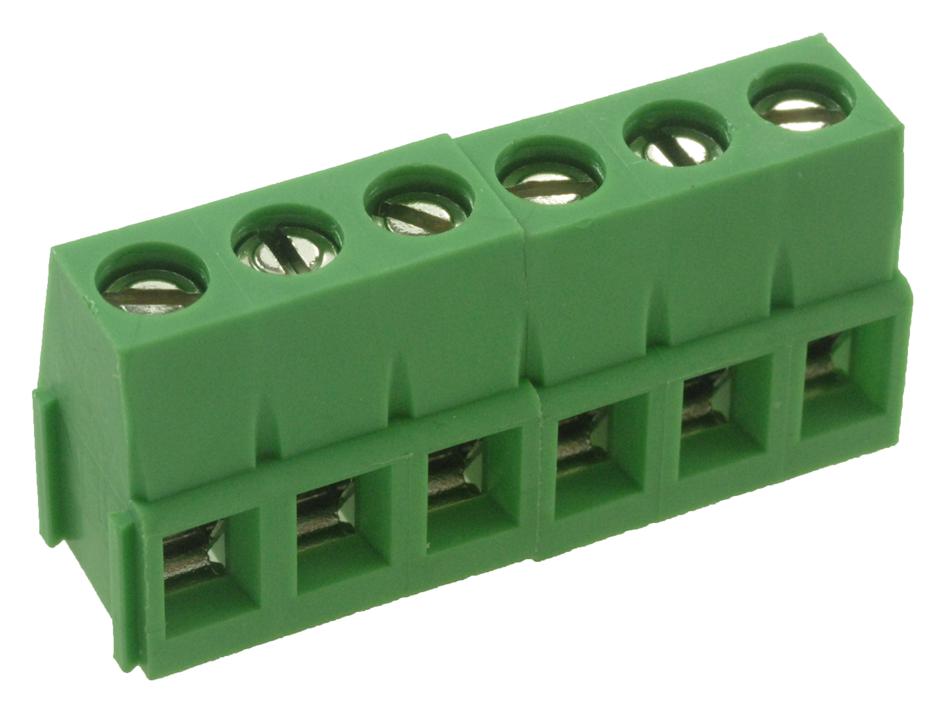

MULTICOMP-PRO MC24364 Industrial Terminal Block
The MC24364 is a 6-way, 16A wire-to-board terminal block designed for industrial applications. Featuring a right-angle through-hole layout and screw wire connection, it boasts durable tin-plated brass contacts, a robust PA66 housing, and a nickel-plated steel cage clamp and screw for secure connections. Rated UL94V-0 for flammability, it operates reliably within -40°C to 105°C, supporting 12AWG to 26AWG wire sizes. Ideal for reliable electrical connections in various industrial setups, it ensures ease of installation and long-term performance.
MULTICOMP-PRO MC24364 Industrial Terminal Block Specifications:
- RoHS Compliant
- Pitch :5.08mm
- Poles :2 to 3Poles
- Housing Material :PA66
- Cage Clamp :Steel
- Contact :Brass, Tin Plated
- Screw Thread :M2.6, Steel, Zinc Plated
- Wire Size :12AWG to 26AWG
- PCB Hole Diameter 1.5mm
- Tightening Torque, Max :7Lb-in
- Operating Temperature :-40°C to +105°C
- Nominal Current :16A
- Maximum Load Current :16A
- Nominal Voltage :300V
- Dimensions : Based on millimetres and inches as per datasheet, e.g., 5.08mm pitch, 28.8mm length, 8.6mm width, 0.31” (7.9mm) PCB hole diameter
- Flammability Rating : UL94V-0
Buy the Multicomp MC24364 – Reliable Industrial Terminal Block for Industrial Applications
Purchase the Multicomp MC24364 industrial terminal block online today and benefit from its durable design and reliable performance. This 16A wire-to-board connection offers a secure screw terminal assembly suitable for industrial equipment, ensuring safe and efficient wiring. Its polyamide housing, tin-plated brass contacts, and steel cage clamp provide longevity and dependable electrical connections. Easy to install with a temperature range of -40°C to 105°C, this terminal block supports 12AWG to 26AWG wire sizes and is essential for robust industrial electrical systems, available for quick online purchase.
Order your Multicomp series MC24364 industrial terminal block today and ensure secure, reliable electrical connections in your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC24364?
You can click on the BUY or RFQ button to purchase MC24364 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24364?
You can download the MC24364 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC24364?
MULTICOMP-PRO
