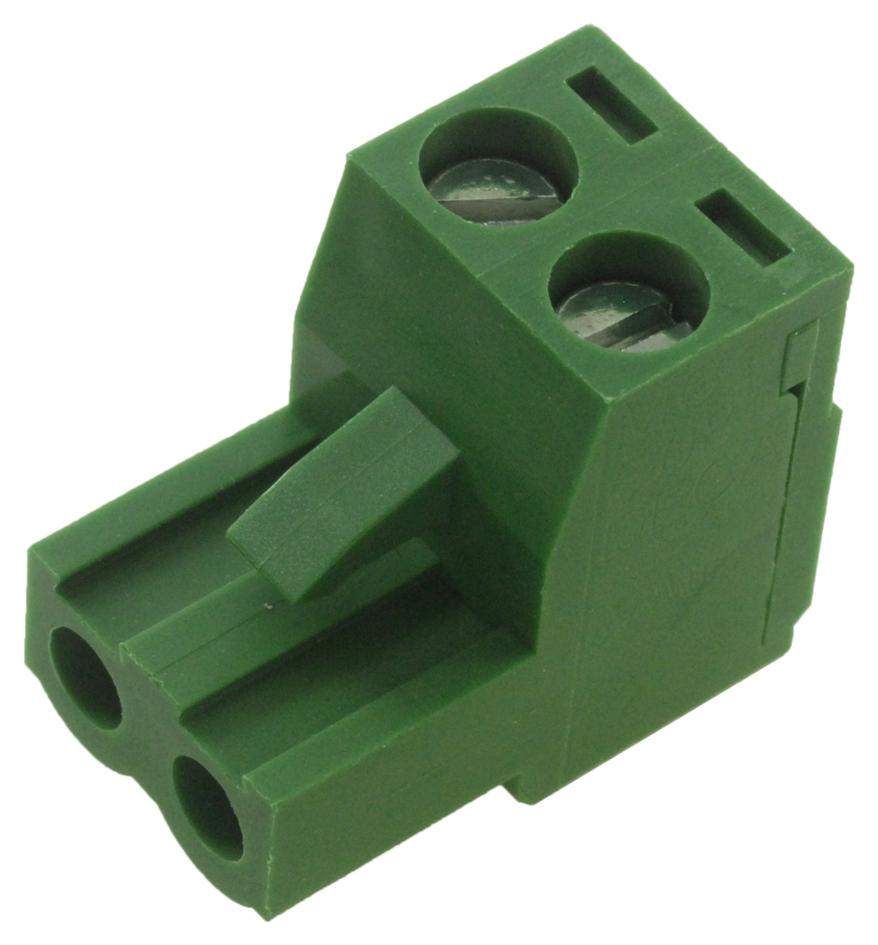

MULTICOMP PRO MC24379 Industrial terminal block
The MC24379 is a two-position terminal block with tin-plated phosphor bronze contacts and a green polyamide 66 (UL94V-0) insulator. It features a Eurostyle™ pluggable design with flange, suitable for wire sizes from 12 to 24 AWG. This terminal block is designed for horizontal wire entry, offering high reliability and flexible installation options for various industrial applications. It supports an insulation resistance of over 2000 MΩ, with a recommended wire strip length of 4 to 5 mm. The screw torque requirement is 7 in-lbs, and the operating temperature range is from -40°C to 105°C.
MULTICOMP PRO MC24379 Industrial terminal block Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2000V AC
- Insulation Resistance: >2000 MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 24-12 AWG
- Screw Torque: 7 in-lbs
- Material: Insulating Body Polyamide 66 Green
- Contact Material: Phosphor Bronze Tin Plated
- Cage Clamp Material: Brass Ni plated
- Screw Material: Steel Zinc+Cr+3
Buy the Multicomp MC24379 – Reliable Terminal Blocks for Industrial Applications
Purchase the Multicomp MC24379 pluggable terminal block online today and experience top-quality, reliable connections for industrial wiring projects. Designed with a green polyamide insulation and tin-plated phosphor bronze contacts, it ensures high durability and efficient wire management. Suitable for wire sizes from 24 to 12 AWG, it features a Eurostyle™ pluggable design with flange, supporting a temperature range from -40°C to 105°C. This top-grade terminal block guarantees optimal insulation resistance and secure connections for various industrial applications, making installation quick and dependable.
Get Multicomp MC24379 today—built for precision in industrial wiring and flexible installation with high insulation resistance and temperature tolerance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24379?
You can click on the BUY or RFQ button to purchase MC24379 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24379?
You can download the MC24379 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24379?
MULTICOMP PRO
