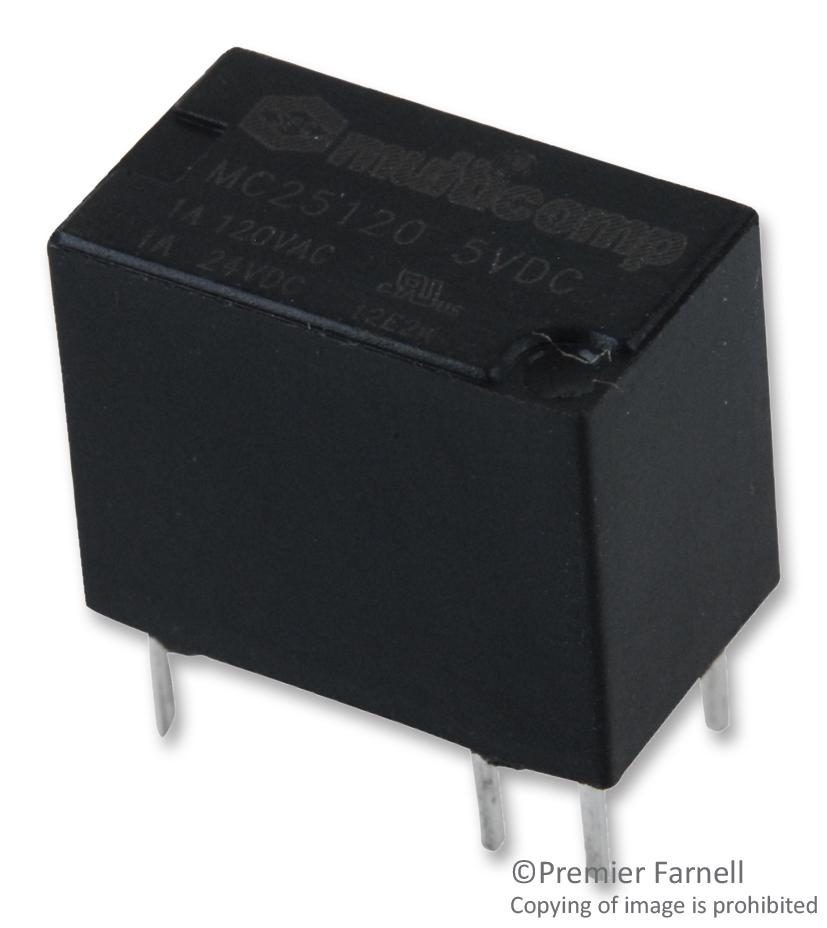

MULTICOMP PRO MC25120 industrial control relay
The multicomp relay is a high-quality electromagnetic switch designed for industrial applications, featuring 21 form C contacts with AuAg overlay and Ag alloy contact material. Capable of handling up to 1A at 120VAC or 24V DC, it offers reliable switching with a maximum switching voltage of 220V AC and 30V DC, and a switching current of 2A. It provides electrical life of 100,000 operations, mechanical life of 5 million, and includes safety features like dielectric strength of 750V AC. Suitable for automation, control systems, and industrial automation, it ensures reliable performance in various environments.
MULTICOMP PRO MC25120 industrial control relay Specifications:
- Contact Material: AuAg overlay, Ag Alloy
- Contact Form: 21 form C
- Nominal Voltage: 120VAC / 24V DC
- Max Switching Voltage: 220V AC / 30V DC
- Max Switching Current: 2A
- Max Switching Power: 120VA, 30W
- Electrical Life: 100,000 operations
- Mechanical Life: 5,000,000 operations
- Insulation Resistance: 1000MQ at 500V DC
- Dielectric Strength: 750V AC, 1 min between open contacts; 1000V AC, 1 min between coil and contacts
- Operate Time: Max 5ms
- Release Time: Max 5ms
- Operate Temperature: -40°C to +70°C
- Surge Strength: 15,000V AC
- Shock Resistance: Endurance 1000m/s², misoperation 100m/s²
- Vibration Resistance: 10 to 55Hz, 1.5mm double amplitude
- Humidity: 35% to 95% RH at +40°C
- Dimensions: Millimetres, mounting hole spacing 2.54mm
Buy the Multicomp Relay MC25120 – Reliable Industrial Control Switch for Automation
Enhance your automation and control projects with the multicomp MC25120 relay, a durable electromagnetic switch offering high reliability, long lifespan, and secure control for industrial applications. Its robust contacts and high insulation resistance ensure safe operation across diverse environments. Whether used in automation, control panels, or manufacturing systems, this relay guarantees efficient switching and dependable performance. Purchase online today to streamline your industrial setups with a proven, high-quality relay designed for demanding applications.
Buy multicomp MC25120 relay now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25120?
You can click on the BUY or RFQ button to purchase MC25120 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25120?
You can download the MC25120 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25120?
MULTICOMP PRO
