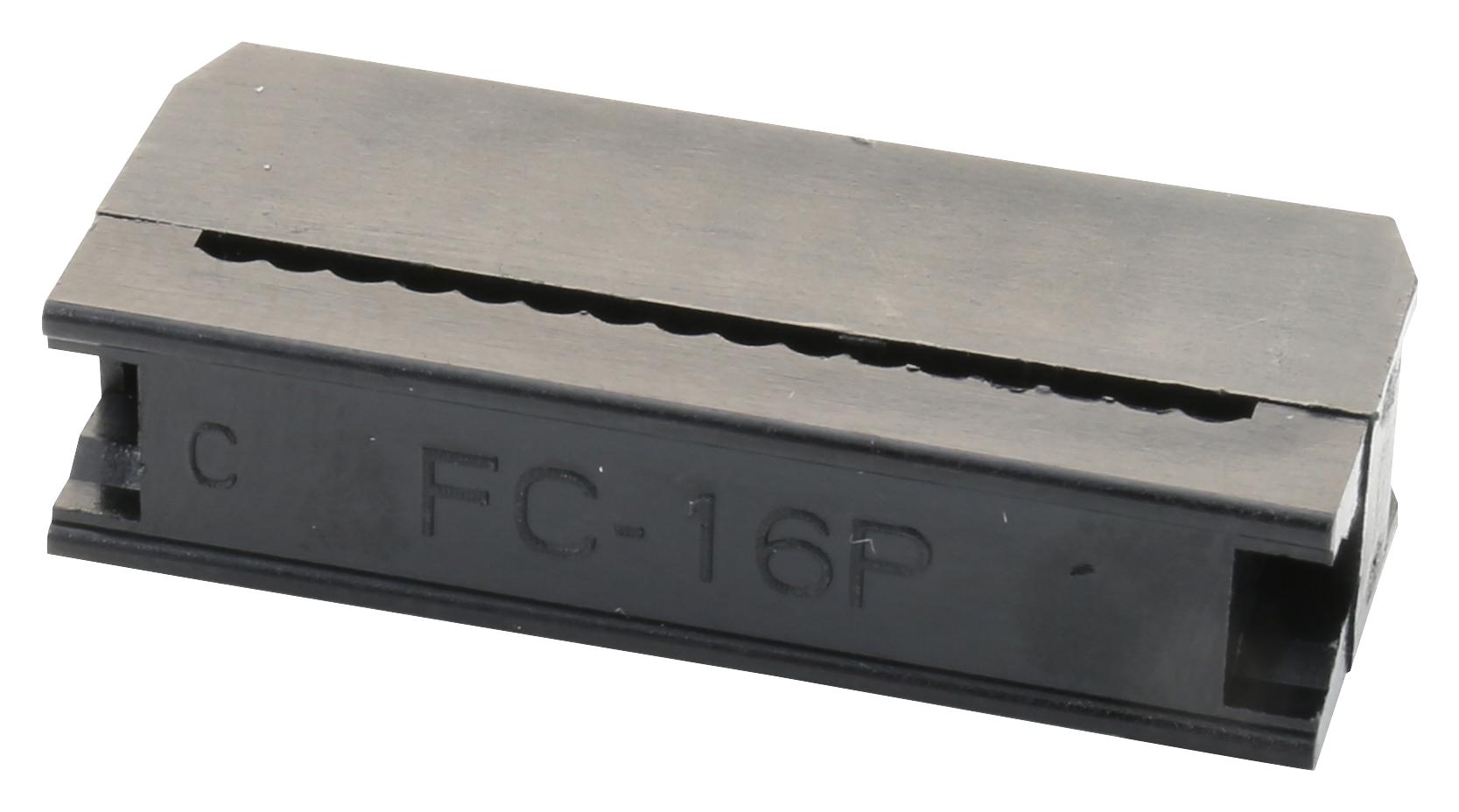

MULTICOMP PRO MC254160000IDC Flat Cable IDC Socket
This 2.54mm pitch flat cable IDC socket from Multicomp Pro is designed for reliable and secure electrical connections in electronic projects. Suitable for 85–90 words, it features high-quality materials with a UL94V-0 PBT insulator and copper alloy contact components, providing excellent durability and electrical performance. It supports a current rating of 1A AC/DC, voltage rating of 30V AC/DC, and is RoHS compliant. The socket is available in various positions, including 6, 8, 10, 12, 14, 16, 18, 20, 24, 26, 30, 34, 40, 50, 60, and 64, with precise dimensions ensuring compatibility with flat ribbon cables. Its gold-plated contacts ensure low contact resistance, perfect for PCB or breadboard connections in automation, control systems, and electronic equipment.
MULTICOMP PRO MC254160000IDC Flat Cable IDC Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 30V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials and Finish: PBT (UL94V-0), Copper Alloy, Gold Plated
- Dimensions: Vary by number of positions, e.g., 6POS: 12.3mm x 5.08mm, 8POS: 14.84mm x 7.62mm, 10POS: 17.38mm x 10.16mm, 12POS: 19.92mm x 12.7mm, 14POS: 22.46mm x 15.24mm, 16POS: 25mm x 17.78mm, 18POS: 27.54mm x 20.32mm, 20POS: 30.08mm x 22.86mm, 24POS: 35.16mm x 27.94mm, 26POS: 37.7mm x 30.48mm, 30POS: 42.78mm x 35.56mm, 34POS: 47.86mm x 40.64mm, 40POS: 55.48mm x 48.26mm, 50POS: 68.18mm x 60.96mm, 60POS: 80.88mm x 73.66mm, 64POS: 85.96mm x 78.74mm.
- RoHS Compliant
Buy the Multicomp Series 2.54mm Flat Cable IDC Socket: MC254160000IDC
Enhance your electronic assemblies with the high-quality 2.54mm pitch flat cable IDC socket from Multicomp Pro. This connector offers a secure, reliable connection with gold-plated contacts, supporting various positions from 6 to 64, suitable for multiple applications like automation and control systems. Crafted from UL94V-0 PBT and copper alloy, it ensures durability and excellent electrical performance. Easy to install, RoHS compliant, and available for quick online purchase, this socket is perfect for professionals needing dependable interconnections in complex electronic projects.
Order your Multicomp Series 2.54mm Flat Cable IDC Socket MC254160000IDC today and secure reliable electrical connections for your projects with ease.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC254160000IDC?
You can click on the BUY or RFQ button to purchase MC254160000IDC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC254160000IDC?
You can download the MC254160000IDC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC254160000IDC?
MULTICOMP PRO
