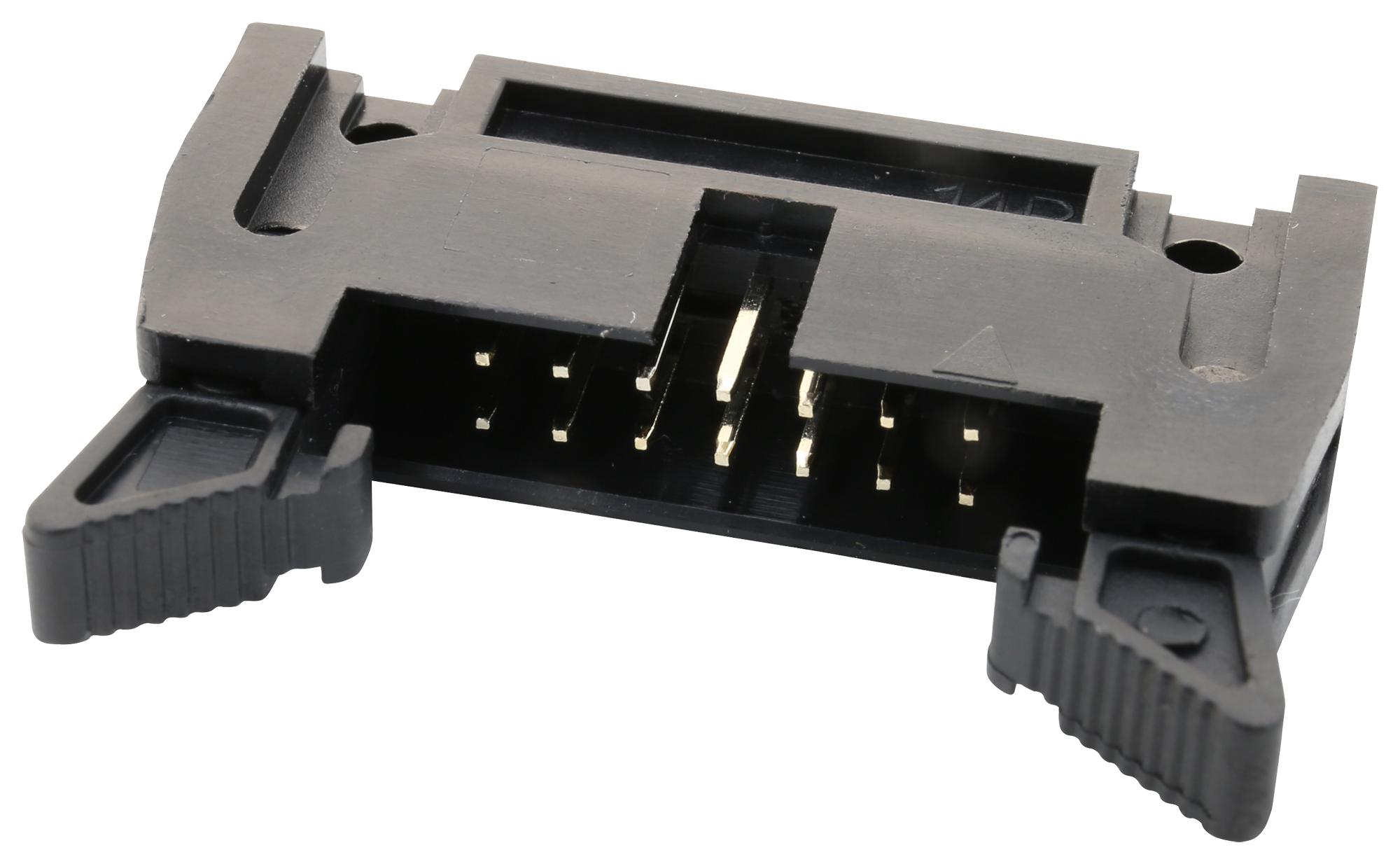

MULTICOMP PRO MC25416SLRADIP 2.54mm Shrouded Header
This 2.54mm shrouded header with ejector from the Multicomp Pro series features a double row, right angle, through hole design suitable for various electronic applications. Available in short and long ejector variants, it supports a current rating of 8A AC/DC and a voltage rating of 250V AC/DC. Made from UL94V-0 rated PBT plastic with gold-plated copper alloy contacts, it ensures durability and reliable connections. Multiple configurations including 10, 14, 16, 20, 26, 34, 40, 50, 60, and 64 positions, with dimensions ranging from 32.2mm to 100.78mm in length, enable versatile mounting options for PCB and industrial projects.
MULTICOMP PRO MC25416SLRADIP 2.54mm Shrouded Header Specifications:
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: PBT (UL94V-0), Copper Alloy
- Plating: Gold
- Dimensions: Length varies from 32.2mm to 100.78mm, width 10.16-78.74mm, compatible with 2.54mm pitch
- Configuration: Double row, through hole, right angle, short or long ejector options
- Number of Positions: 10 to 64
- Color: Black
Buy the Multicomp Series Double Row 2.54mm Shrouded Header: MC25416SLRADIP
Enhance your electronic assemblies with the high-quality 2.54mm shrouded header featuring a double row, right angle design, and reliable gold-plated contacts. Suitable for PCB mounting, it supports up to 8A current and 250V voltage, with durable UL94V-0 rated PBT plastic. Multiple configurations including short and long ejectors for versatile fitting, available in various lengths from 32.2mm to 100.78mm, ensure perfect fit for your design needs. Purchase online to benefit from reliable quality and quick delivery for your manufacturing or repair projects.
Order your Multicomp Series 2.54mm shrouded header with ejector today and ensure reliable, versatile connections for your electronic projects.
