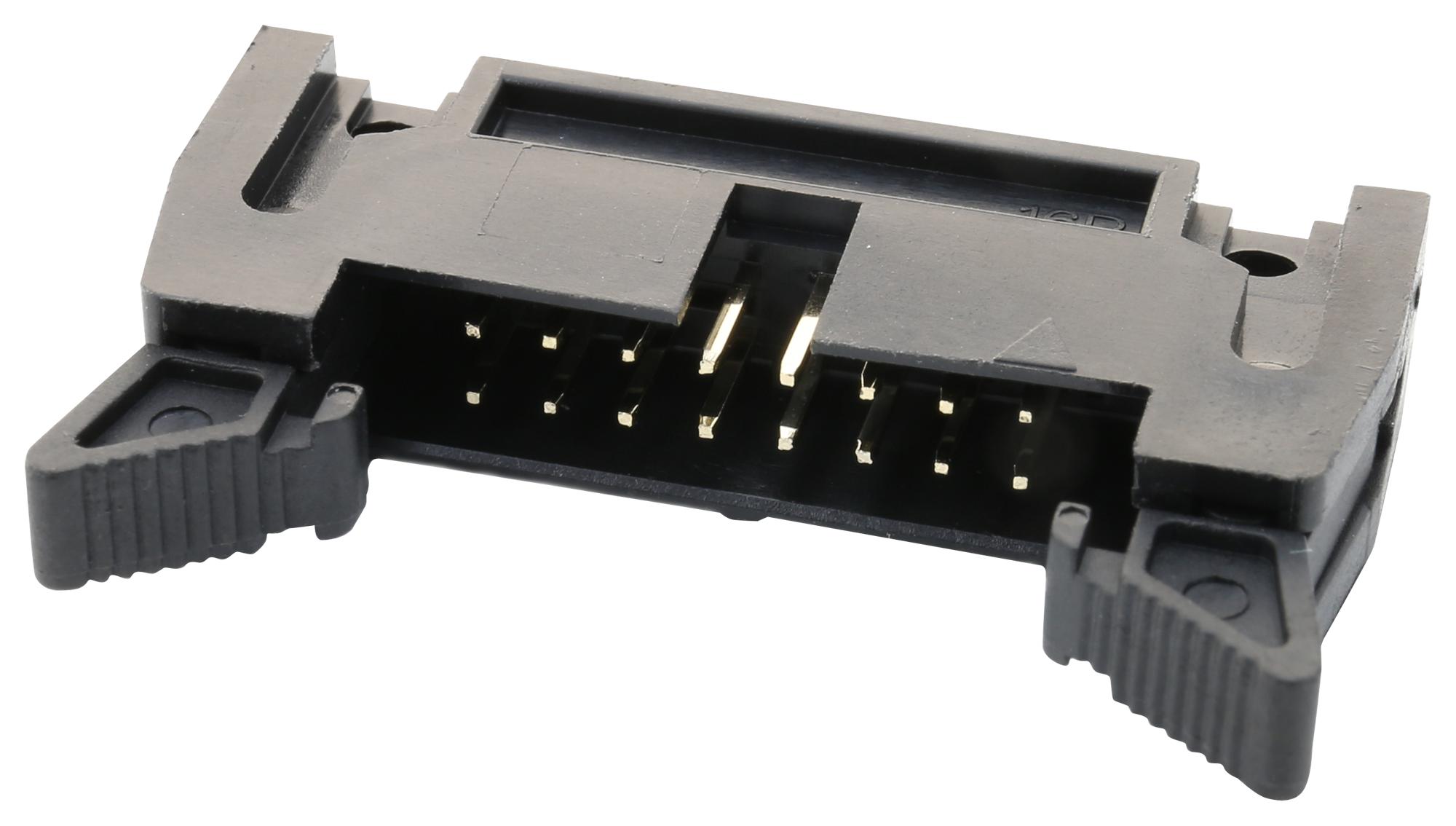

MULTICOMP PRO MC25426LLSTDIP 2.54mm shrouded header with ejector
This high-quality 2.54mm shrouded header with ejector from Multicomp Pro features a double row, vertical through-hole design suitable for various electronic assemblies. Available in both short and long ejector variants, it supports multiple pin counts from 10 to 64 positions, ensuring versatility for diverse connection needs. Crafted from UL94V-0 rated PBT plastic with gold-plated copper alloy contacts, it offers reliable conductivity, corrosion resistance, and durability. Designed for secure connections, these headers are RoHS compliant, withstand voltages up to 250V AC/DC, and operate efficiently within -40°C to +105°C temperature range, ideal for PCB applications.
MULTICOMP PRO MC25426LLSTDIP 2.54mm shrouded header with ejector Specifications:
- Current Rating: 3AAC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mQ Max.
- Insulation Resistance: 1000MQ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials and Finish: PBT (UL94V-0) plastic, gold-plated copper alloy contacts
- Standard Colour: Black
- Plating: Gold
- RoHS: Compliant
- Dimensions vary based on pin count, with long and short ejector options, typical dimensions range from 32.2mm to 100.78mm in length, with a 2.54mm pitch
Buy the Multicomp Series 2.54mm Shrouded Header with Ejector: MC25426LLSTDIP
Enhance your PCB assemblies with these durable and reliable 2.54mm double row vertical shrouded headers featuring ejectors from Multicomp Pro. Designed with gold-plated copper contacts, they ensure excellent conductivity and corrosion resistance. Available in various pin counts from 10 to 64, these headers support secure and stable connections in electronic devices, accommodating applications within -40°C to +105°C temperature ranges. RoHS compliant, they are ideal for professional, industrial, and hobbyist electronic projects requiring quality and versatility.
Buy Multicomp MC25426LLSTDIP now and experience unmatched reliability, secure connections, and versatile pin configurations for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25426LLSTDIP?
You can click on the BUY or RFQ button to purchase MC25426LLSTDIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25426LLSTDIP?
You can download the MC25426LLSTDIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25426LLSTDIP?
MULTICOMP PRO
