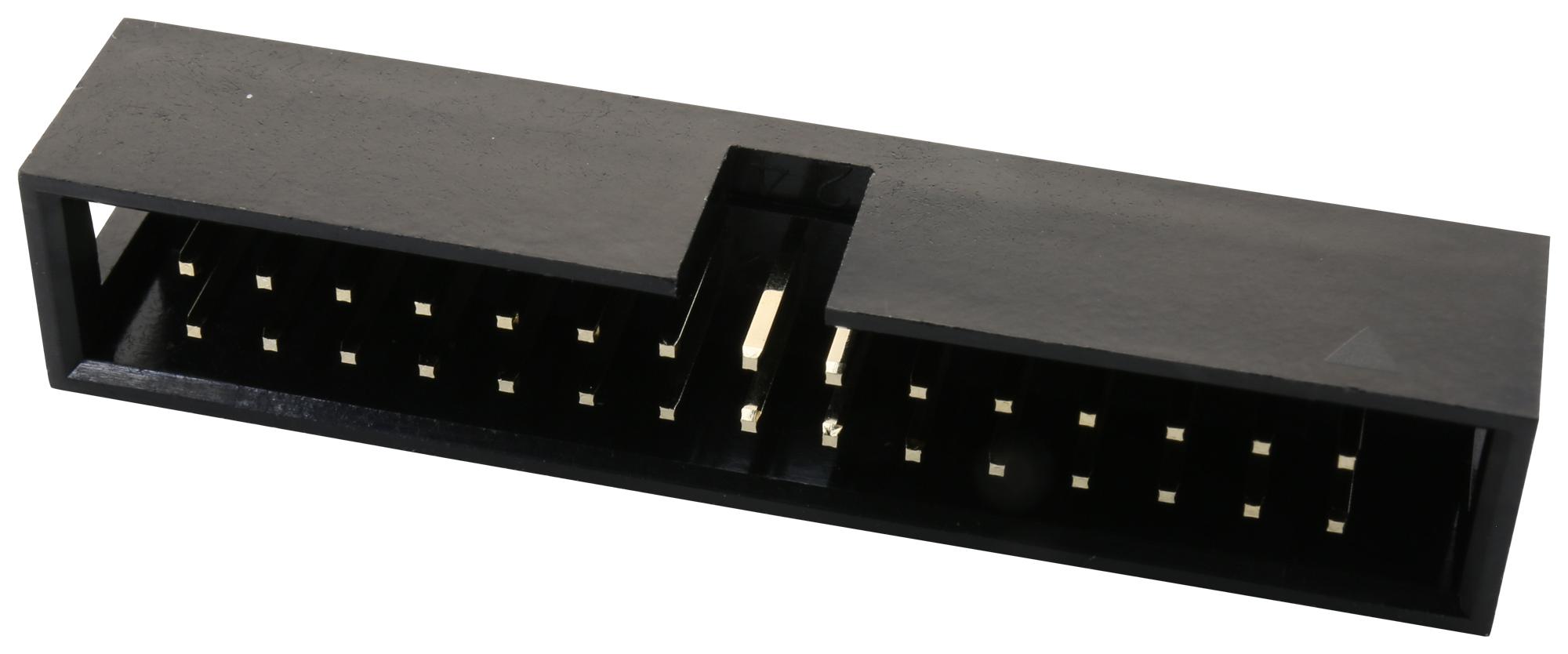

MULTICOMP PRO MC2543000STDIP Vertical Box Header
This high-quality 2.54mm pitch double row vertical through-hole box header is designed for reliable connections in electronic assemblies. Constructed with a durable copper alloy contact plated with gold for optimal conductivity and corrosion resistance, it features an insulator made of UL94V-0 rated PBT material in black color. The header supports current ratings up to 8A AC/DC and voltage ratings of 250V AC/DC. It withstands voltage of 600V AC for one minute and operates over a temperature range of -40°C to +105°C. Suitable for various industrial and electronic applications requiring secure, multi-position connectors.
MULTICOMP PRO MC2543000STDIP Vertical Box Header Specifications:
- Pitch: 2.54mm
- Contact Material: Copper Alloy
- Contact Finish: Gold Plated
- Insulation Material: PBT (UL94V-0)
- Color: Black
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Dimensions vary depending on number of positions, e.g., 15.28mm to 71.16mm in length, typical width around 5-60mm, height around 12-69mm
- Number of Positions: Ranges from 6POS to 64POS
- Number of Rows: 2
- Mounting Type: Through Hole
- Key Feature: OneKey design for secure connection
- Standards: RoHS Compliant
Buy the Multicomp Pro 2.54mm – Reliable Connection Headers for Industrial Applications
Secure high-quality electronic connections with our 2.54mm pitch vertical box headers. Crafted with durable copper alloy contacts and gold plating, these headers ensure excellent conductivity and corrosion resistance. Their UL94V-0 rated PBT insulator in black provides thermal stability and robust insulation. Suitable for industrial and electronic use, these through-hole headers support up to 8A current and 250V voltage ratings, withstanding 600V AC for one minute. Operating effectively from -40°C to +105°C, they are ideal for reliable, multi-position connections in diverse applications.
Buy Multicomp Pro 2.54mm box headers now and experience unmatched reliability and performance for your electronic assemblies.
