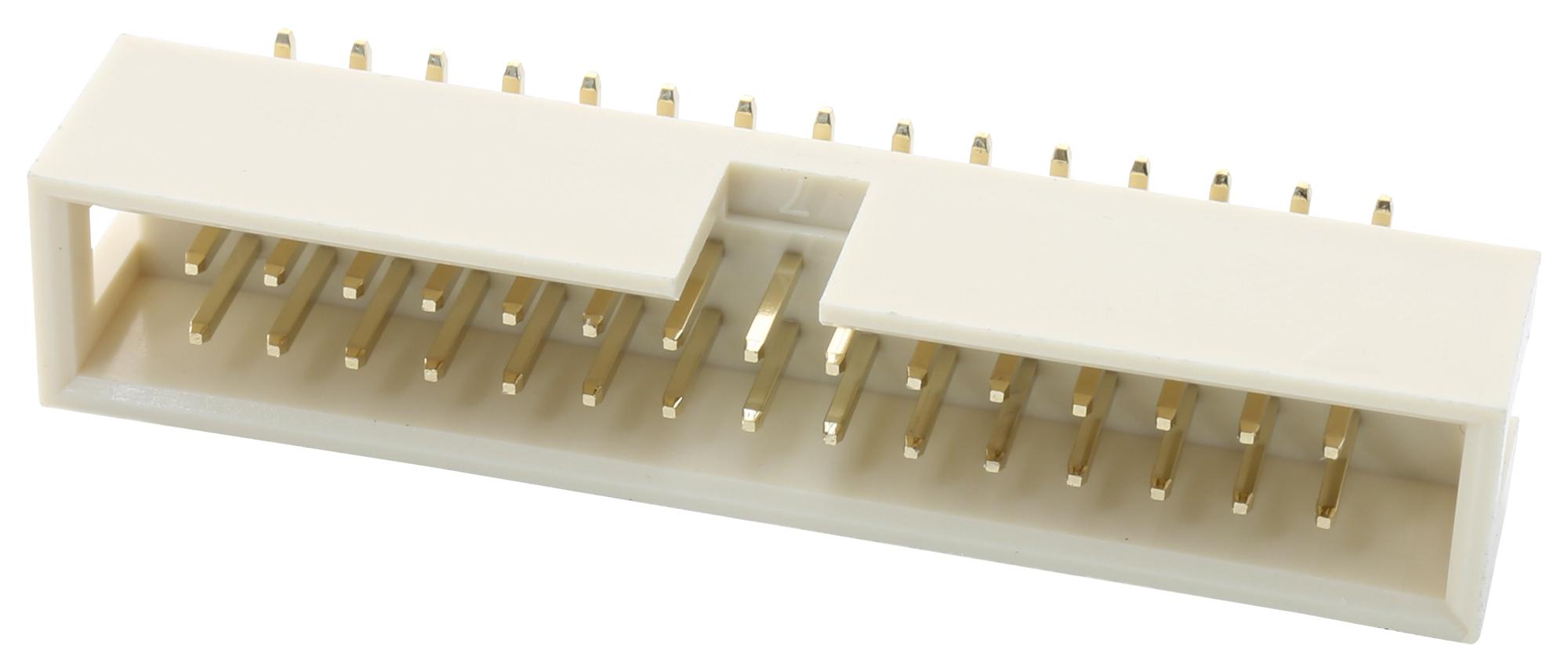

MULTICOMP-PRO MC2543400STSMD 2.54mm Box Header
This high-quality 2.54mm box header from Multicomp Pro features a double row, SMD design suitable for secure and reliable connections on printed circuit boards. It supports a voltage rating of 250V AC/DC and a current rating of 5A, made from high-temp nylon (UL94V-0) insulator and copper alloy contacts with gold plating to ensure excellent conductivity and corrosion resistance. Designed for surface-mount technology, this header withstands temperatures up to 105°C, has a contact resistance of 20mΩ max, and an insulation resistance of 1000MΩ min. Offers a UL listed, RoHS compliant construction with a max reflow temperature of 260°C, compatible with standard PCB layouts.
MULTICOMP-PRO MC2543400STSMD 2.54mm Box Header Specifications:
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 600V AC for one minute
- Current Rating: 5A
- Voltage Rating: 250V AC/DC
- Material: High-temp plastic (Nylon 6T UL94V-0), Copper Alloy
- Contact Finish: Gold Plated
- Operating Temperature Range: -40°C to +105°C
- Reflow Temperature: 260°C, 5 sec max
- Dimensions vary with model, example for 6POS: 15.28mm x 5.08mm
- RoHS compliant, UL listed
Buy the Buy Multicomp Pro 2.54mm Box Header Part Number MC2543400STSMD Online
Order the Multicomp Pro 2.54mm Box Header MC2543400STSMD online today for reliable surface-mount connections. Built with high-temp nylon insulator, gold-plated contacts, and rated at 250V/5A, it ensures durable and corrosion-resistant PCB connections. This SMD double row header supports reflow soldering up to 260°C, with a contact resistance of 20mΩ and insulation resistance of 1000MΩ. Compatible with various PCB layouts, it is ideal for professional electronic assembly and versatile industrial applications. Secure your electronics today with this trusted component.
Get Multicomp Pro 2.54mm box header MC2543400STSMD today—designed for secure PCB connections with high-temperature resistance and gold-plated contacts.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC2543400STSMD?
You can click on the BUY or RFQ button to purchase MC2543400STSMD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2543400STSMD?
You can download the MC2543400STSMD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC2543400STSMD?
MULTICOMP-PRO
