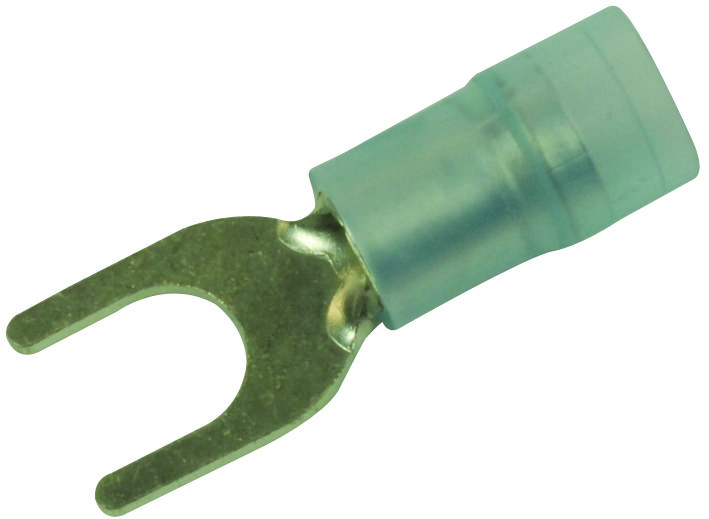

MULTICOMP PRO MC29606 Heavy Duty Spade Terminals
Nylon-insulated heavy-duty spade terminals designed for secure and reliable electrical connections. Suitable for wire ranges from 12 to 22 AWG and rated for 600V at 105°C, these terminals feature double crimping with copper sleeves on the barrel for enhanced conductivity. The nylon insulation provides excellent durability, color-coded for easy identification: red for 22-16 AWG, blue for 16-14 AWG, and yellow for 12-10 AWG. Ideal for various industrial wiring applications, they comply with RoHS standards and ensure efficient, safe electrical connections with a maximum current capacity up to 50 amperes.
MULTICOMP PRO MC29606 Heavy Duty Spade Terminals Specifications:
- Wire Range: 12-22 AWG
- Voltage Rating: 600V
- Temperature Rating: 105°C
- Insulation Material: Nylon
- Contact Plating: Tin
- Type: Spade
- Termination Method: Crimp
- Max Amperes: 50
- Color Codes: Red (22-16 AWG), Blue (16-14 AWG), Yellow (12-10 AWG)
- Double Crimp: Yes with copper sleeve on barrel
- Max. Electric Current: AWG 22 - 9A, 20 - 12A, 18 - 17A, 16 - 18A, 14 - 30A, 12 - 35A, 10 - 50A
Buy the Buy Multicomp Heavy Duty Nylon-Insulated Spade Terminals Part Number MC29606 Online
Order the Multicomp MC29606 heavy-duty spade terminals online today and enjoy quick delivery. These durable, nylon-insulated terminals ensure secure electrical connections for a wide range of wiring projects. Designed for wire ranges from 12 to 22 AWG and rated for 600V at 105°C, they feature double crimping with copper sleeves for maximum conductivity. Easy to identify with color-coding—red, blue, and yellow—these terminals are ideal for professional and DIY electrical wiring, providing safety and reliability in industrial and commercial applications.
Buy Multicomp MC29606 now and experience unmatched reliability and performance with heavy-duty nylon-insulated spade terminals for industrial wiring.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC29606?
You can click on the BUY or RFQ button to purchase MC29606 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC29606?
You can download the MC29606 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC29606?
MULTICOMP PRO
