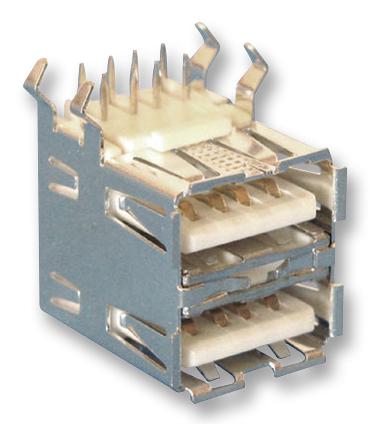

MULTICOMP PRO MC32594 USB Socket
This USB Type A socket features a double row, right-angle PCB mount design suitable for various electronic projects and devices. It supports a current rating of 2A and operates within -40°C to +105°C temperature range. The socket has 18 contacts with solder termination, made from phosphor bronze with gold plating on contact areas and tin plating on solder tails. Encased in a PBT insulator with nickel-plated brass shell, it is RoHS compliant and designed for reliable USB connections in industrial and consumer electronics. Easy to install and stable for long-term use.
MULTICOMP PRO MC32594 USB Socket Specifications:
- Current Rating: 2A
- Voltage Rating: 30V AC/DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1000MΩ
- Withstanding Voltage: 750V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Connector Type: USB 2A Receptacle
- Gender: Receptacle
- No. of Contacts: 18
- Contact Termination: Solder
- Connector Mounting: PCB
- Material and Finish: Insulator - PBT, Contact - Phosphor bronze, Plating - Gold on contact, Tin on solder tail, Shell - Brass, nickel plated
- RoHS Compliant
Buy the Buy multicomp USB Socket Part Number MC32594 Online
Purchase the multicomp USB Type A socket MC32594 online and enjoy a durable, RoHS-compliant connector designed for PCB mounting. This 18-pin, right-angle receptacle supports 2A current, making it perfect for various electronic devices and industrial applications. Constructed from high-quality materials including phosphor bronze and PBT insulator, it features gold and tin plating for reliable electrical contacts. Easy to install with solder termination, ensuring a stable connection for long-term use. Get this essential component today to enhance your electronic system’s performance.
Order your multicomp SeriesMC32594 USB Socket today and ensure reliable, high-quality USB connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32594?
You can click on the BUY or RFQ button to purchase MC32594 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32594?
You can download the MC32594 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32594?
MULTICOMP PRO
