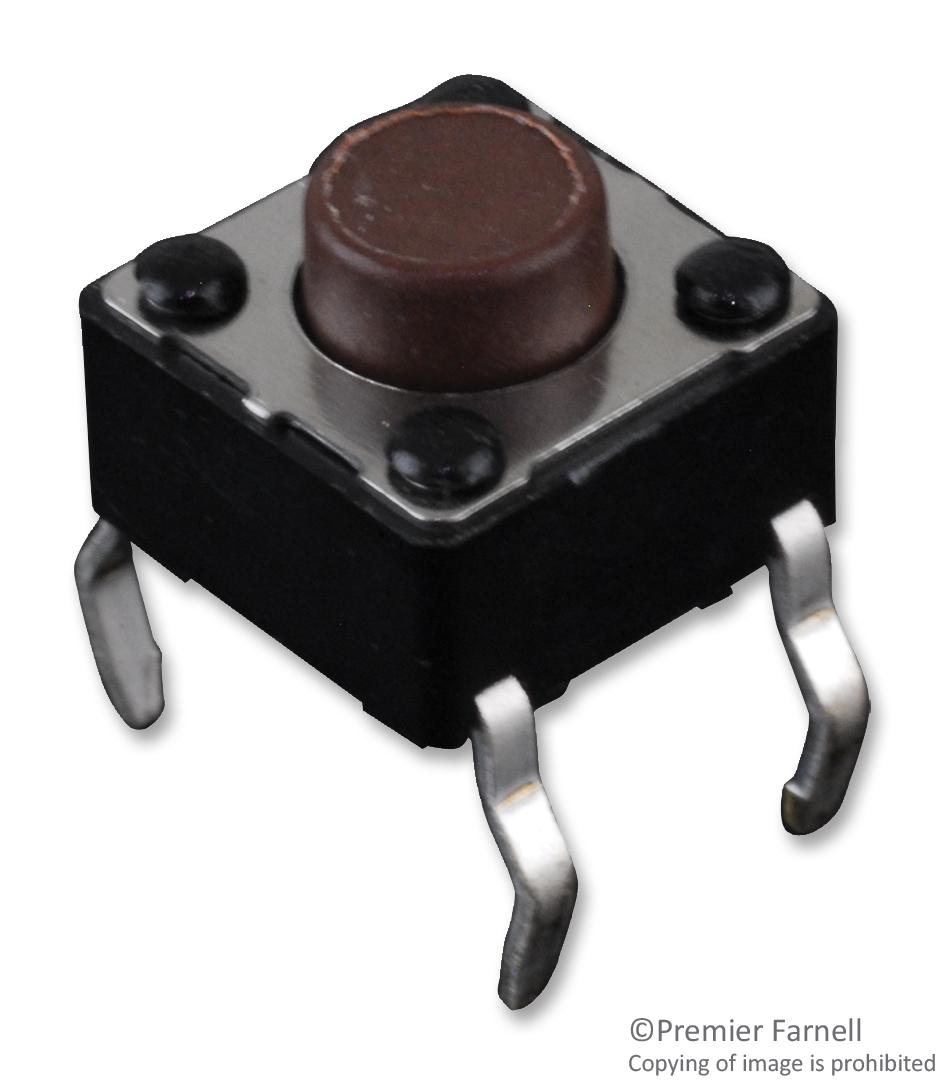

MULTICOMP PRO MC32829 Tactile Switch
The MC32829 is a single-pole single-throw tactile switch with a stainless steel cover and silver-plated brass terminals. It features a phosphor bronze dome contact rated for 200,000 cycles, with a contact resistance of 100 milliohms. Constructed from UL94V-0 nylon, it withstands temperatures from -25°C to 70°C. The switch offers a dielectric strength of 2,500VAC for one minute and a minimum insulation resistance of 100 megaohms at 500VDC. Suitable for industrial equipment, it ensures reliable manual operation with high durability and excellent electrical performance.
MULTICOMP PRO MC32829 Tactile Switch Specifications:
- Operation Temperature: -25°C to +70°C
- Dielectric Strength: 2,500VAC / 1 minute
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Electrical Rating: 50mA, 12V DC
- Contact Material: Brass with silver plating
- Contact Dome Material: Phosphor bronze or stainless steel
- Stem Material: UL94V-0 Nylon High-Temp Thermoplastic
- Cover Material: Stainless steel
- Stroke: 0.354mm
- Mechanical Load: Max. 3kgf static load
- Operation Force: 100gf or 160gf depending on model
- Electrical Life: Up to 1,000,000 cycles for stainless steel contact
- Dimensions: 23.50mm height, various PCB layout options
- Mounting: Through-hole
Buy the MulticompPro MC32829 – Reliable Tactile Switch for Industrial Applications
Order the Multicomp Pro MC32829 tactile switch online today and ensure your industrial or control panel projects benefit from high durability, excellent electrical stability, and long operational life. Designed with stainless steel contact discs and a robust nylon base, it offers reliable switching with a contact resistance of only 100 milliohms. Whether replacing existing switches or designing new systems, this switch provides excellent performance at an affordable price. Purchase now to guarantee quick delivery and seamless integration into your applications.
Buy Multicomp Pro MC32829 now and experience unmatched reliability with high cycle life and solid electrical performance for your control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32829?
You can click on the BUY or RFQ button to purchase MC32829 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32829?
You can download the MC32829 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32829?
MULTICOMP PRO
