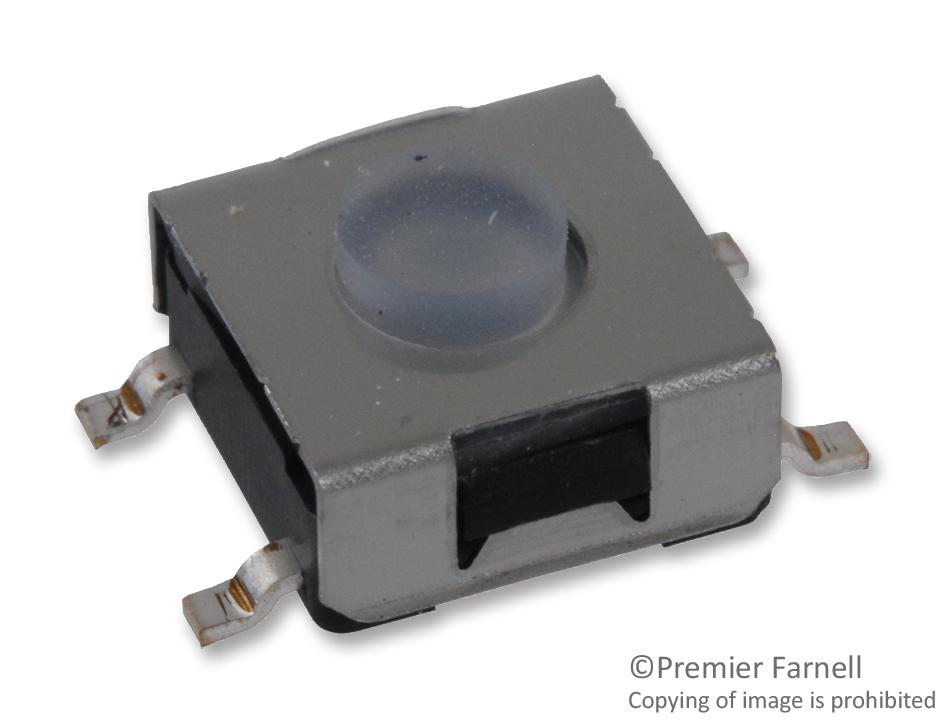

MULTICOMP PRO MC32845 Tactile Switch
The product is a tactile switch designed for precise manual operation in electronic devices. Featuring a stainless steel cover and brass terminals with silver plating, it offers reliable contact performance. The switch operates within temperatures of -25°C to +70°C, with an electrical life of 500,000 cycles, rated at 50mA and 12 VDC. Its stroke measures approximately 0.45 mm, and it supports vertical static loads up to 3 kgf. Made from high-temperature thermoplastic and stainless steel, it ensures durability, excellent electrical insulation, and consistent performance in various applications.
MULTICOMP PRO MC32845 Tactile Switch Specifications:
- Operation Force: See Table
- Stop Strength: Max 3kgf vertical static load
- Stroke: 0.45 ± 0.2mm
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Life: 500,000 cycles
- Rating: 50mA, 12 VDC
- Contact Resistance: 100 mΩ max
- Insulation Resistance: 100 MΩ at 500 VDC
- Dielectric Strength: 250 VAC / 1 minute
- Contact Arrangement: 1 pole 1 throw
- COVER: Stainless Steel
- BASE: UL94V-0 Nylon High-temp Thermoplastic
- CONTACT: Stainless Steel
- TERMINAL: Brass with silver plating
Buy the Multicomp Series Tactile Switch: MC32845
Purchase the high-quality tactile switch online today for reliable performance in your electronic projects. Designed with stainless steel and thermoplastic materials, this switch offers exceptional durability, a stroke of approximately 0.45 mm, and a rated current of 50mA at 12VDC. It supports up to 500,000 cycles, making it ideal for demanding applications. Easy to integrate with a compact size, it ensures consistent contact resistance and excellent insulation resistance. Order now to enhance your devices with this durable component available for quick online delivery.
Get Multicomp Series Tactile Switch MC32845 today—built for precise operation and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32845?
You can click on the BUY or RFQ button to purchase MC32845 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32845?
You can download the MC32845 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32845?
MULTICOMP PRO
