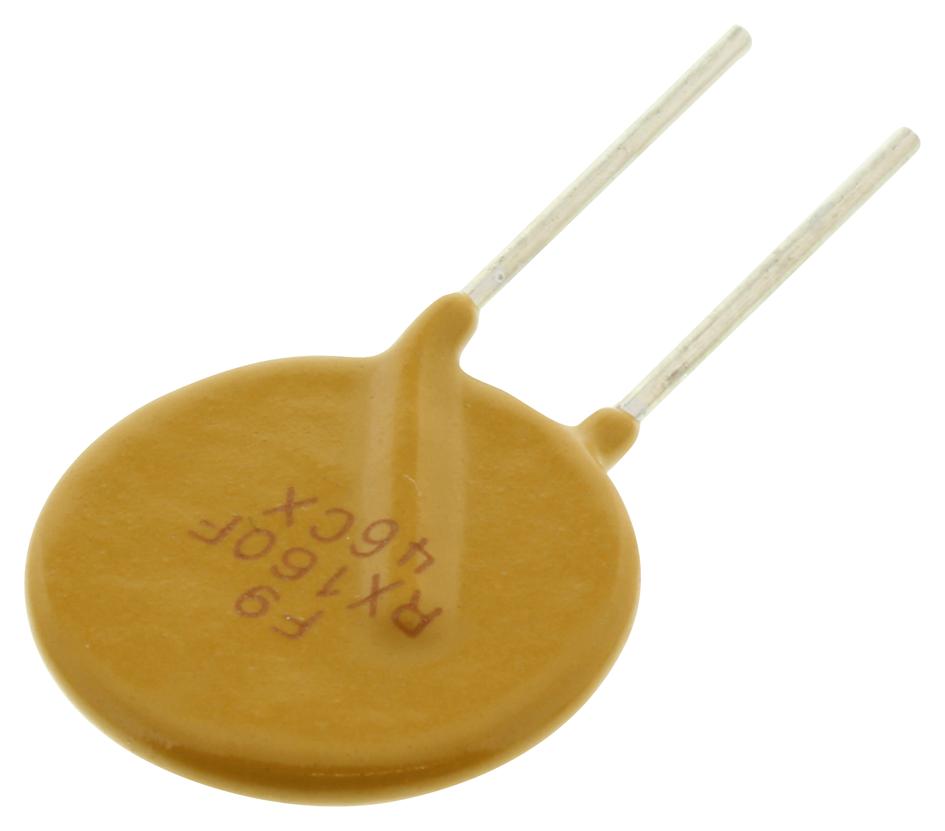

MULTICOMP PRO MC33182 Radial Leaded PTC Fuse
The Radial Leaded PTC Resettable Fuse from multicomp Pro is a solid-state device suitable for protecting electronic circuits against overcurrent conditions. Designed to operate up to 90V with low hold current, it features tin-plated copper leads and flame-retardant epoxy insulation. Ideal for telecom and various electronic equipment, it trips at specified currents to prevent damage, with UL recognition for safety. Its compact radial design ensures reliable circuit protection with a quick reset after trip, making it a versatile choice for both industrial and consumer electronic applications.
MULTICOMP PRO MC33182 Radial Leaded PTC Fuse Specifications:
- Lead Material: Tin plated copper
- Soldering Characteristic: MIL-DTD-202, Method 208E
- Insulating Coating: Flame retardant epoxy
- Operating Current: 100mA to 3.75A
- Max. Voltage: Up to 90V
- Temperature Range: -40°C to 85°C
- Agency Recognition: UL File E345437
- Dimensions: Diameter approximately 12.7mm to 28.5mm depending on model, Lead Size: 24AWG to 20AWG, Mating diameters 90.51mm to 97mm
- Electrical: Hold Current: 0.1A to 3.75A, Trip Current: 0.2A to 7.5A, Max Voltage: 90V, Power Dissipation: 0.03W to 0.56W, Resistance: min 0.08Ω, max 44Ω
- Rated Power: 0.03W to 0.56W depending on model, Trip characteristics designed for rapid circuit protection, UL recognized safety certification
Buy the multicomp Series Radial Leaded PTC Fuse: MC33182
Purchase the high-quality multicomp SeriesMC33182 radial leaded PTC fuse online today. With a rated voltage of up to 90V, low hold current, and UL recognition, it provides reliable circuit protection for telecom, industrial, and electronic equipment. Its compact size, durable insulation, and thermal stability ensure safe operation across a wide temperature range. Designed for easy installation with tin-plated copper leads, this resettable fuse guarantees quick recovery after fault conditions, safeguarding your electronic devices efficiently and cost-effectively.
Order your multicomp SeriesMC33182 radial leaded PTC fuse today and give your electronic projects the dependable surge protection they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC33182?
You can click on the BUY or RFQ button to purchase MC33182 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC33182?
You can download the MC33182 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC33182?
MULTICOMP PRO
