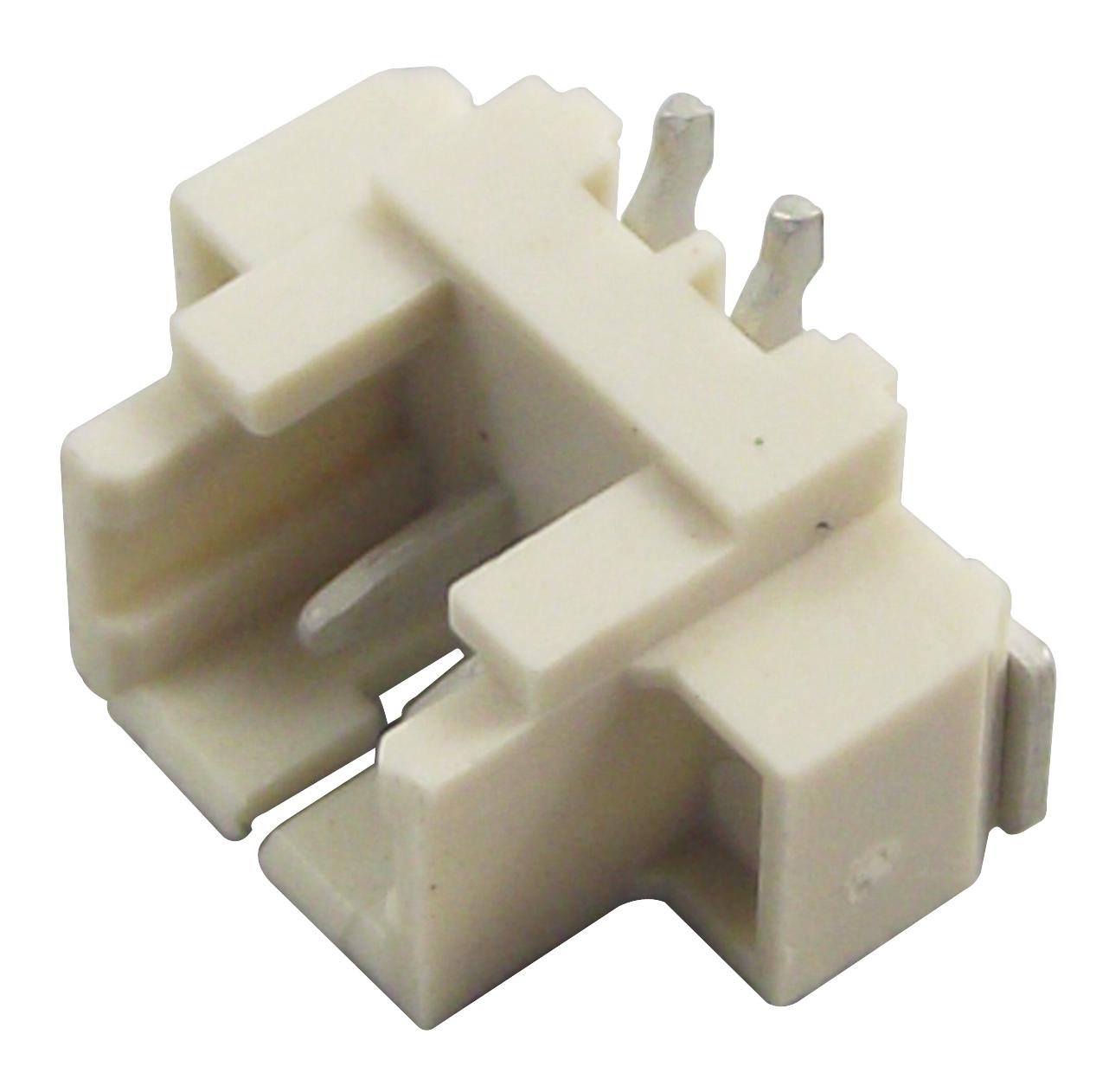

MULTICOMP PRO MC34437 Pin Header Connector
The shrouded pin header allows secure surface-mount connection in electronic assemblies, featuring a 1.25mm pitch and multiple positions from 2 to 15. Made from high-temperature plastic with tin-plated copper alloy contacts, it offers reliable current and voltage ratings of 1A AC/DC and 125V AC/DC respectively. Its compact design ensures easy surface mounting with dimensions tailored for precise fit. Suitable for advanced electronic projects, it provides excellent insulation resistance, low contact resistance, and withstands voltage tests. Ideal for PCB connections in industrial and consumer electronics, ensuring durability, safety, and precise electrical performance.
MULTICOMP PRO MC34437 Pin Header Connector Specifications:
- Pitch: 1.25mm
- Number of Positions: 2 to 15
- Material: High Temp. Plastic (UL94V-0), Copper Alloy contacts
- Plating: Tin
- Operating Temperature Range: -40°C to +85°C
- Current Rating: 1A AC/DC
- Voltage Rating: 125V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: > 100MQ Min.
- Withstanding Voltage: 250V AC for one minute
- Dimensions vary by model, with typical lengths around 7.25 mm to 17.6 mm, and widths between 4.25 mm to 11.75 mm.
Buy the Multicomp Series Pin Header: 1.25mm Surface-Mount Connectors MC34437
Enhance your electronic assemblies with the reliable surface-mount pin headers designed for secure PCB connections. Featuring a 1.25mm pitch, with options from 2 to 15 positions, these high-temperature plastic insulators and tin-plated copper contacts ensure durability and excellent electrical performance. Perfect for industrial, consumer, or professional electronics, offering low contact resistance, high insulation resistance, and withstand voltage up to 250V. Order online now for fast delivery and superior quality connection solutions, trusted by manufacturers worldwide.
Buy Multicomp MC34437 now and experience unmatched reliability and performance in your surface-mount electronic connections.
