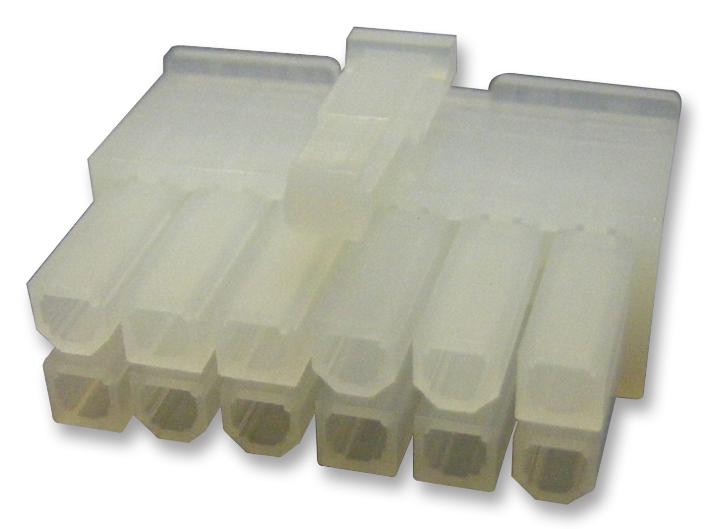

MULTICOMP PRO MC34509 Receptacle Housing
Receptacle housing suitable for various electrical and electronic applications, made from nylon 66 with brass contacts. It supports a current rating of 9A AC/DC and handles voltage up to 600V AC/DC. The insulator is transparent white, with tin-plated contacts ensuring reliable connectivity. Designed to operate within a temperature range of -40°C to +105°C, it accommodates wire sizes from 16AWG to 28AWG. The dimensions are optimized for precise circuit connection, with circuit configurations including 6 and 12-pin options, featuring robust insulation resistance and withstand voltage ratings for dependable performance.
MULTICOMP PRO MC34509 Receptacle Housing Specifications:
- Current Rating: 9A AC/DC
- Voltage Rating: 600V AC/DC
- Contact Resistance: > 10MO Max.
- Insulation Resistance: 1,000MO Min.
- Withstanding Voltage: 1,500V AC/Minute
- Operating Temperature Range: -40°C to +105°C
- Application Wire: 16AWG to 28AWG
- Material and Finish: Nylon 66 insulator, transparent white; Brass contact, tin plated
- Dimensions (Millimetres):
- Circuit : 6, 12
- Dimensions : DIM.A 8.4, DIM.B 13.8, DIM.C 3.3
- Wire Application Dimensions: 16AWG (3.6mm A, 45mm B, 23mm C, 27mm D), 18-24AWG (3.6mm A, 45mm B, 1.9mm C, 23mm D), 22-28AWG (23mm A, 23mm B, 1.8mm C, 1.65mm D)
Buy the Multicomp Series Receptacle Housing: MC34509
Secure your electrical projects with the Multicomp Receptacle Housing, offering high durability, excellent insulation, and compatibility with 16-28AWG wires. Manufactured from high-quality nylon and brass, it ensures reliable connectivity. With a voltage rating of 600V AC/DC and a current capacity of 9A, it is ideal for both industrial and electronic applications. The design supports multiple circuit configurations and withstands temperatures from -40°C to +105°C. Order online today and enhance your electrical installations with trusted components.
Buy Multicomp MC34509 now and experience unmatched reliability and performance in electrical connections.
