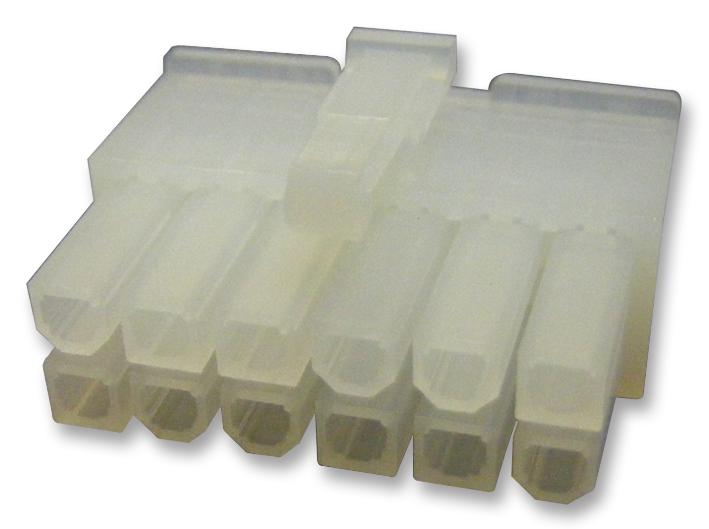

MULTICOMP PRO MC34549 Wire-to-Wire Connector
Multicomp Pro 4.2mm wire-to-wire dual row connectors are versatile and reliable for electronic and electrical applications. Designed for seamless wire connections, these connectors feature robust nylon 66 insulator housing and tin-plated brass or phosphor bronze crimp terminals for durability and corrosion resistance. Suitable for wire sizes from 26AWG to 16AWG, they support currents up to 9A and voltage ratings of 100V AC/DC. With operating temperatures from -40°C to +105°C, these connectors are ideal for automation, control, and industrial equipment requiring secure, high-quality connections.
MULTICOMP PRO MC34549 Wire-to-Wire Connector Specifications:
- Current Rating: 9A AC/DC
- Voltage Rating: 100V AC/DC
- Contact Resistance: 0.1Ω Max
- Receptacle Insulation Resistance: 1,000MQ Min
- Withstanding Voltage: 1,500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Wire Size: 26AWG to 16AWG
- Housing Material: Nylon 66
- Crimp Terminal Material: Phosphor Bronze or Brass, Tin Plated
- Maximum Panel Thickness: 2mm
- Dimensions vary by circuit count, with detailed measurements for 2 to 20 circuit options
- Features: Dual row, wire-to-wire connection, secure locking mechanism
- Applications: Industrial equipment, automation systems, control panels, electronic devices
Buy the Multicomp Series 2259 4.2mm Wire to Wire Connectors: MC34549
Order the Multicomp Series 2259 4.2mm wire-to-wire dual row connectors online today to ensure secure, dependable connections for your industrial automation and electronic projects. Designed with nylon insulator housing and tin-plated terminals, these connectors support wire sizes from 26AWG to 16AWG, handling currents up to 9A and operating temperatures from -40°C to +105°C. They feature robust construction, easy assembly, and compatibility with multiple circuit configurations, making them ideal for control panels, automation systems, and industrial equipment requiring high-quality, durable wire connections.
Get Multicomp Series 2259 4.2mm Wire to Wire Connectors today—engineered for reliable, high-current, industrial-grade connections.
