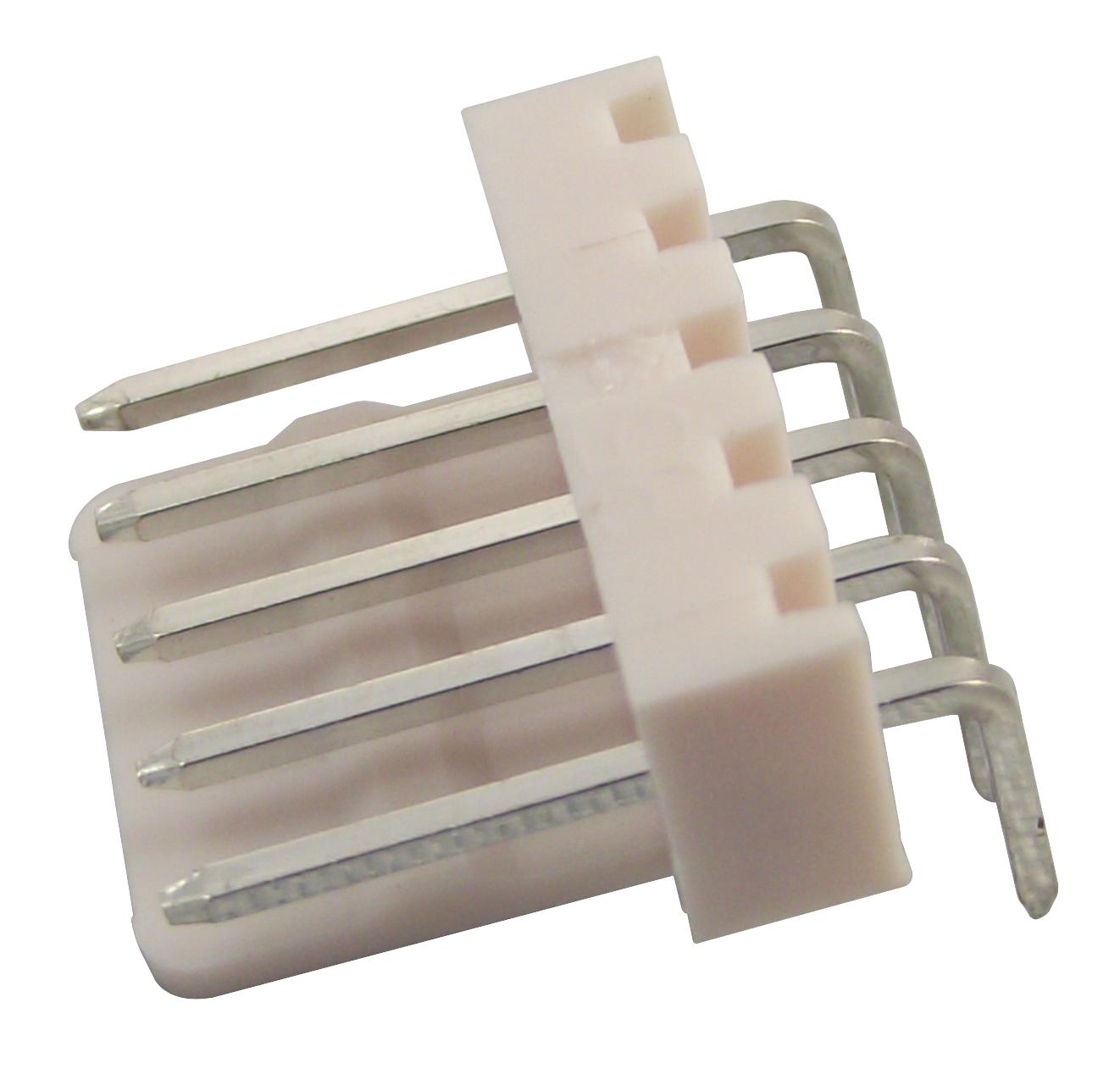

MULTICOMP PRO MC34647 Right-Angle PCB Header
This right-angle PCB header connector facilitates secure circuit board connections and electronic assembly, offering reliable contact and easy integration. Made from high-temperature plastic with brass contacts and tin plating, it complies with RoHS standards and features a current rating of 3A AC/DC and a voltage rating of 250V AC/DC. Its operating temperature ranges from -40°C to +105°C, with maximum contact resistance of 20mΩ and insulation resistance above 1,000MΩ. The connector's dimensions and hole spacing make it ideal for various electronic applications, ensuring durability and high-quality performance.
MULTICOMP PRO MC34647 Right-Angle PCB Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Maximum Contact Resistance: 20mΩ
- Minimum Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 1,000V AC/minute
- Operating Temperature Range: -40°C to +105°C
- Material and Finish: Insulator: High Temperature Plastic (nylon 66); Insulator Colour: Beige; Contact: Brass; Plating: Tin Plated
- Contact Pitch: 2.54mm
- Number of Ways: 2 to 12
- Dimensions vary by model, detailed in datasheet
- RoHS compliant
Buy the Multicomp Pro MC34647 – Reliable Right-Angle PCB Connector for Industrial Applications
Enhance your electronic projects with this high-quality right-angle PCB header connector. Designed for durability and easy installation, it features a 2.54mm pitch, brass contacts with tin plating, and is RoHS compliant. Suitable for circuit boards requiring reliable connections in industrial and consumer electronics. Its operating temperature of -40°C to +105°C ensures performance in various environments. Accurate dimensions and multiple ways—2, 3, 4, 5, 6, 10, 12—allow flexible configurations for your circuit expansion needs. Order online today for superior connectivity.
Get Multicomp Pro MC34647 today—built for precision and long-lasting durability in electronic circuit assembly.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC34647?
You can click on the BUY or RFQ button to purchase MC34647 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34647?
You can download the MC34647 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC34647?
MULTICOMP PRO
