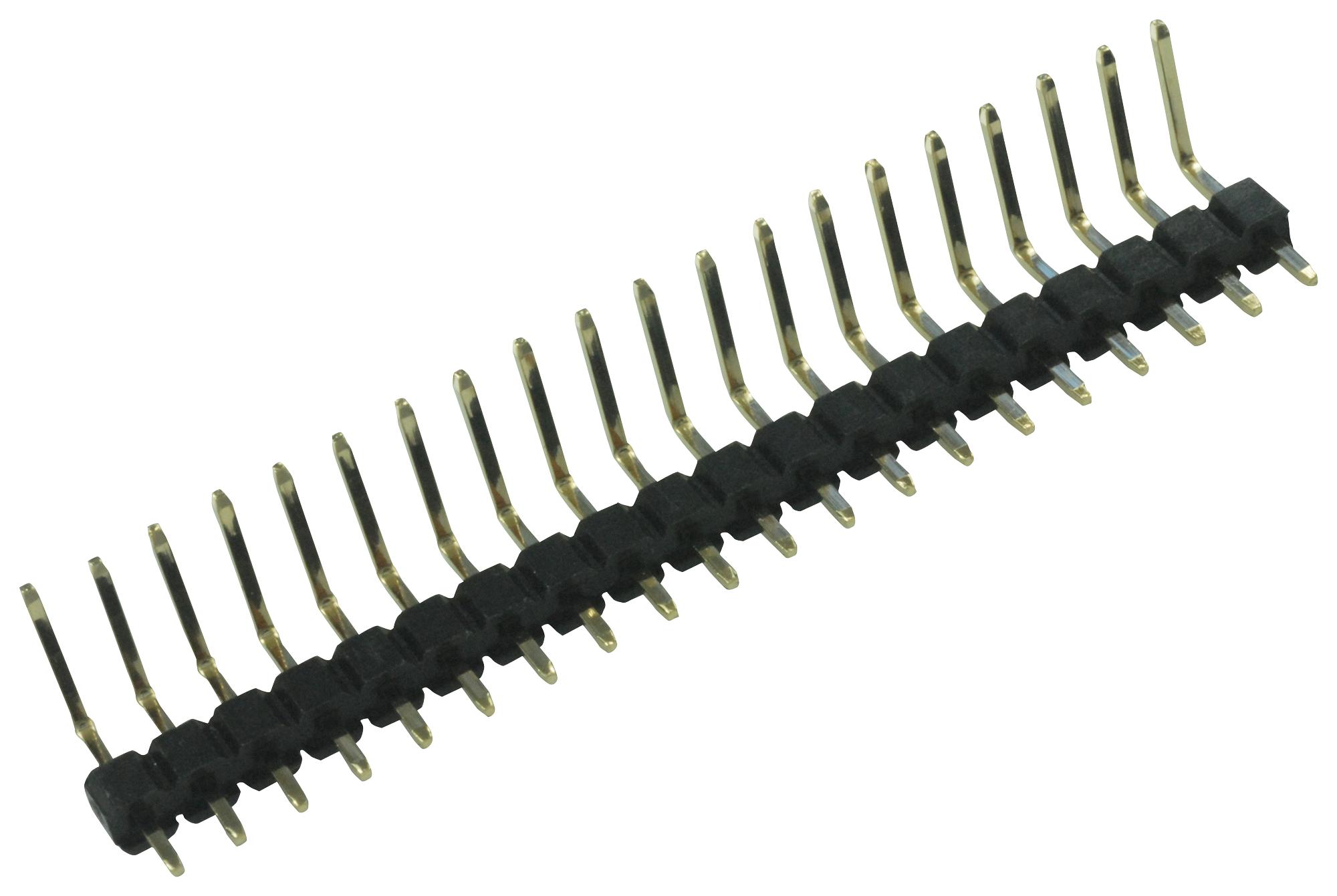

MULTICOMP-PRO MC34763 Right Angle PCB Header
The MC34763 is a 20-position, single-row, right-angle header with gold-plated copper alloy contacts and a black high-temperature plastic insulator. This board-to-board connector features through-hole mounting and solder termination, rated for 3A current and 250V voltage. It has a contact resistance of 20 milliohms, an insulation resistance of 1000 megaohms, and operates within a temperature range of -40°C to +105°C. Suitable for communication and networking applications.
MULTICOMP-PRO MC34763 Right Angle PCB Header Specifications:
- Connector Type: Board to Board
- Pitch Spacing: 2.54mm
- Number of Rows: 1
- Number of Contacts: 20
- Gender: Header
- Contact Termination: Through Hole, Solder
- Contact Resistance: 20mΩ
- Current Rating: 3A
- Insulation Resistance: 1000MQ
- Operating Temperature: -40°C to +105°C
- Voltage Rating: 250V AC/DC
- Withstand Voltage: 600V AC for One Minute
- Insulator: High Temperature Plastic
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
Buy the Buy Multicomp 20-Way Right Angle PCB Header Part Number MC34763 Online
Order the high-quality Multicomp right-angle PCB header MC34763 online for your communication and networking projects. This 20-position connector offers durable gold-plated copper contacts, a black high-temperature plastic insulator, and rated for 3A current at 250V. Its through-hole solder termination ensures secure mounting, with an operating range of -40°C to +105°C. Perfect for reliable, long-lasting electronic assemblies, this header supports efficient board-to-board connectivity in various industrial, networking, and communication applications.
Get Multicomp MC34763 today—built for reliable connections with high current capacity and temperature tolerance.
