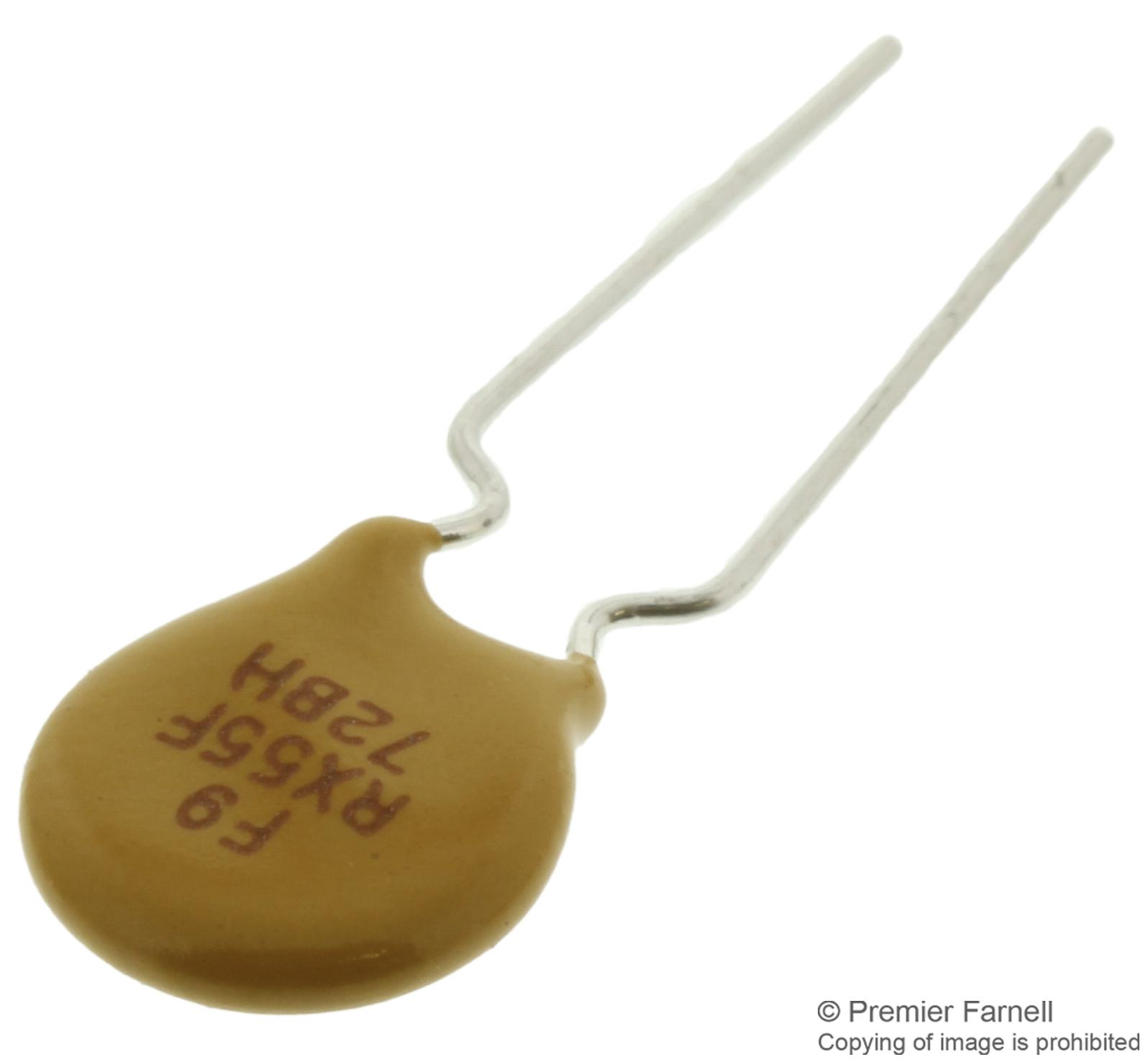

MULTICOMP PRO MC36193 PTC Resettable Fuse
The radial leaded PTC resettable fuse by multicomp®pro offers reliable overcurrent protection for electronic devices. With a wide operating current range from 50mA to 3A and maximum voltage of 60V, it features low hold current and solid-state construction, ideal for diverse electronic applications. The fuse's lead material is tin-plated copper, soldered using MIL-DTD-202, Method 208E, with a flame retardant epoxy coating. Suitable for circuit protection in various electronic equipment, it is UL recognized, ensuring safety and quality in both consumer and industrial products.
MULTICOMP PRO MC36193 PTC Resettable Fuse Specifications:
- Lead Material: Tin plated copper
- Soldering Characteristic: MIL-DTD-202, Method 208E
- Insulating Coating: Flame retardant epoxy
- Operating Current: 50mA to 3A
- Max. Voltage: 60V
- Temperature Range: -40°C to 85°C
- Agency Recognition: UL File E345437
- Dimensions: Diameter approximately 90.51mm or 90.81mm depending on option, Lead Size: 24AWG or 20AWG, with specific length options
- Electrical Characteristics (23°C): Hold current up to 3A, Trip current from 0.05A to 3A, Max voltage 60V, Power dissipation up to 25W
- Features: Solid state, low hold current, suitable for electronic circuit protection
Buy the Buy Multicomp PTC Resettable Fuse Part Number MC36193 Online
Purchase the high-quality multicomp PTC resettable fuse MC36193 online today. Designed for dependable circuit protection, it features a current range from 50mA to 3A, maximum voltage of 60V, and UL recognition for safety assurance. Its solid-state design, radial leaded construction, and flame retardant epoxy coating make it suitable for a wide variety of electronic equipment. Enjoy quick delivery and reliable performance, ensuring your electronic devices operate safely and efficiently with this essential overcurrent protection component.
Get Multicomp PTC Resettable Fuse MC36193 today—built for reliable overcurrent protection in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC36193?
You can click on the BUY or RFQ button to purchase MC36193 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC36193?
You can download the MC36193 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC36193?
MULTICOMP PRO
