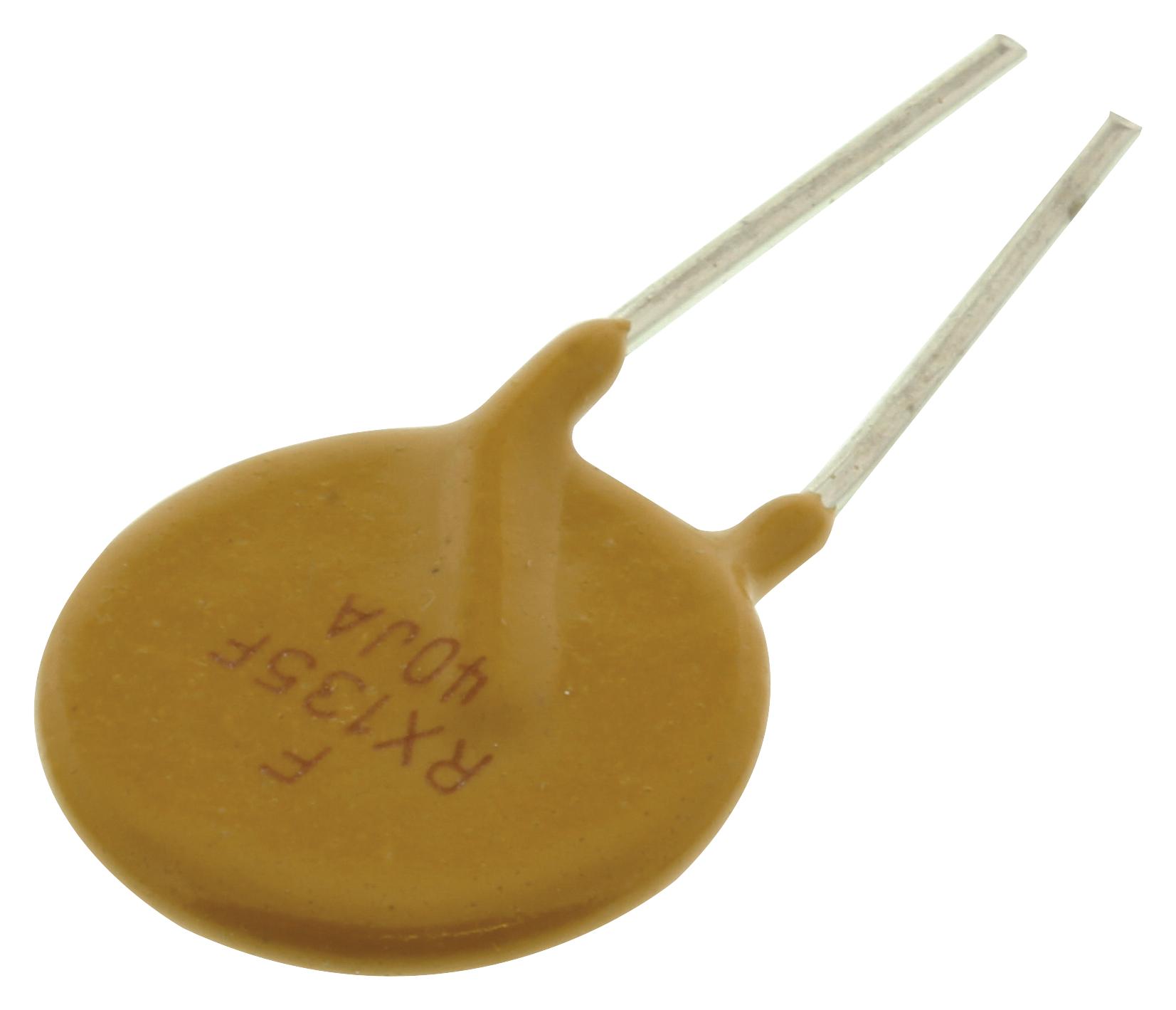

MULTICOMP PRO MC36198 Resettable Fuse
The Radial Leaded PTC Resettable Fuse from Multicomp Pro is a solid-state, RoHS-compliant fuse designed for telecom and electronic applications. It features low hold current with a maximum operating voltage of 60V DC and a temperature range from -40°C to +85°C. The fuse has tin-plated copper leads, with soldering characteristics conforming to MIL-DTD-202, Method 208E, and a flame-retardant epoxy coating. Its electrical properties include varying hold currents from 0.05A to 3A, allowing protection against overcurrent conditions in sensitive electronic devices.
MULTICOMP PRO MC36198 Resettable Fuse Specifications:
- Lead Material: Tin plated copper
- Soldering Characteristic: MIL-DTD-202, Method 208E
- Insulating Coating: Flame retardant epoxy
- Operating Current: 0.05A to 3A
- Max. Voltage: 60V DC
- Temperature Range: -40°C to +85°C
- Dimensions: Diameter approximately 2mm, lead size options 24AWG or 20AWG, length varies from 7.6mm to 26.4mm based on part number
- Electrical Characteristics: Hold current from 0.05A to 3A, trip current slightly above hold current, typical resistance from 0.13Ω to 20Ω, power dissipation up to 0.88W, max voltage 60V, with trip time max ranging from seconds to over a minute depending on load
Buy the Multicomp Pro MC36198 U– Reliable Resettable Fuse for Industrial Applications
Purchase the reliable modular resettable fuse online for your electronic and telecom projects. Designed for durability and safety, this fuse offers stable protection with a maximum voltage of 60V DC and low hold current. Suitable for a wide range of electronic devices, its tin-plated copper leads ensure excellent conductivity, while the flame-retardant epoxy coating adds safety features. Available in various current ratings from 0.05A to 3A, it provides optimal circuit protection, easy installation, and compliance with RoHS standards. Secure your electronic safety needs today!
Get Multicomp Pro MC36198 today—built for precision and long-lasting durability in electronic safety devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC36198?
You can click on the BUY or RFQ button to purchase MC36198 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC36198?
You can download the MC36198 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC36198?
MULTICOMP PRO
