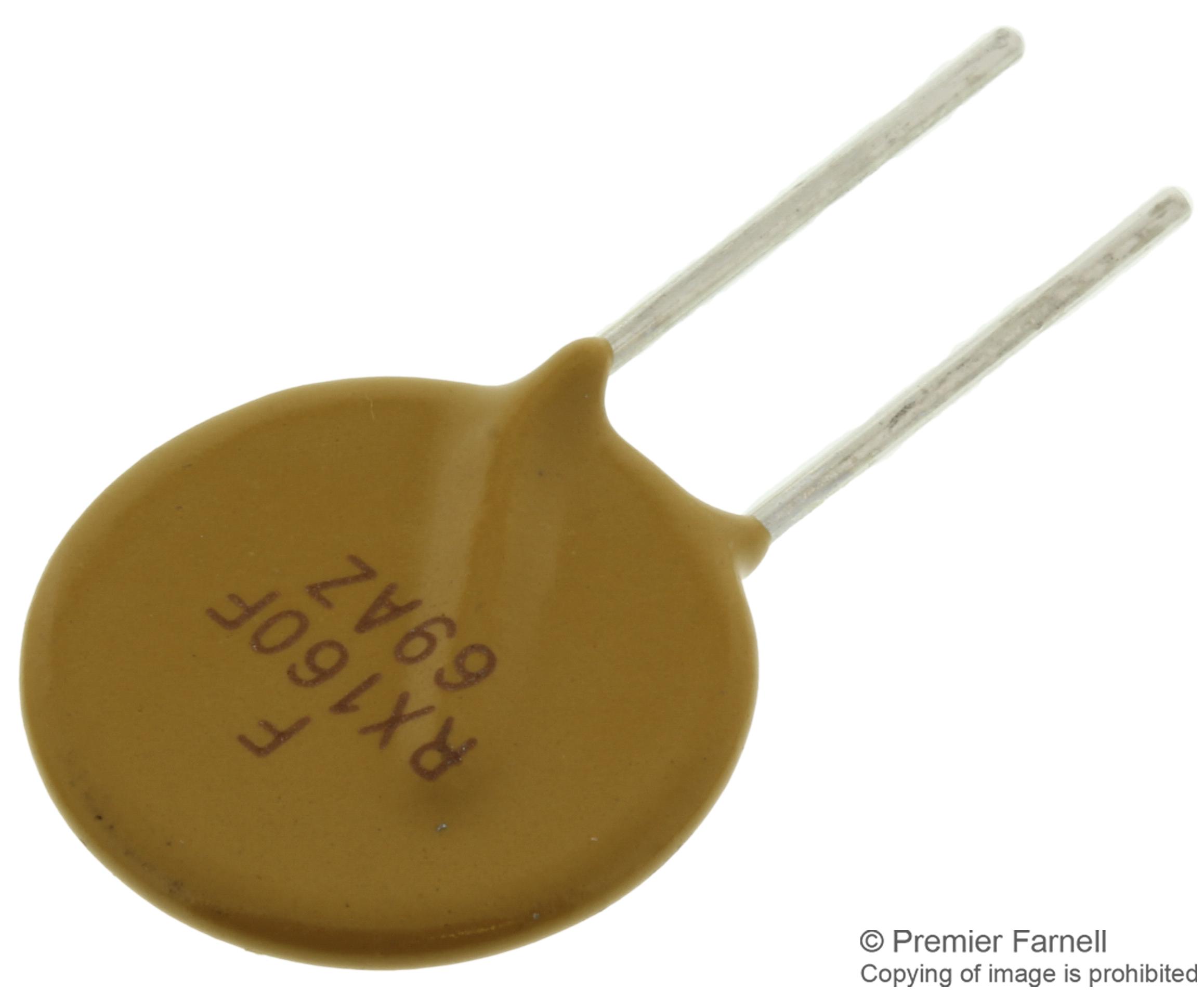

MULTICOMP PRO MC36199 PTC Resettable Fuse
The Radial Leaded PTC Resettable Fuse by multicomp is a solid-state, low hold current fuse designed for protection in electronic circuits up to 60V. Featuring tin-plated copper leads and flame retardant epoxy insulation, it offers reliable overcurrent protection with quick trip times at rated currents. Suitable for a wide range of electronic equipment, this fuse complies with RoHS standards and UL recognition. Its compact radial design ensures easy installation in various applications, providing durable performance in environments from -40°C to 85°C.
MULTICOMP PRO MC36199 PTC Resettable Fuse Specifications:
- Lead Material: Tin plated copper
- Soldering Characteristic: MIL-DTD-202, Method 208E
- Insulating Coating: Flame retardant epoxy
- Operating Current: 50mA to 3A
- Max. Voltage: 60V
- Temperature Range: -40°C to 85°C
- Dimensions: Diameter approximately 90.51mm to 90.81mm depending on option
- Lead Size: 24AWG or 20AWG
- Agency Recognition: UL File E345437
- Flammability: UL 94V-0
- Contact Material: Tin-plated copper
- Power Dissipation: Up to 0.88W depending on model
- Maximum Fault Current: 27A to 30A depending on model
- Maximum Voltage to Withstand: 60V
Buy the Multicomp Series PTC Resettable Fuse: MC36199
Get the multicomp MC36199 PTC resettable fuse today online and ensure your electronic devices are protected with a reliable, high-quality fuse rated up to 60V. This radial leaded fuse offers quick trip response, low hold current, and robust construction with flame retardant epoxy coating. Ideal for a variety of electronic applications, it helps prevent damage from overcurrent situations and complies with RoHS standards. Purchase now through our online store for fast delivery and peace of mind.
Buy multicomp MC36199 now and experience unmatched reliability and performance with high current protection for electronic circuits.
