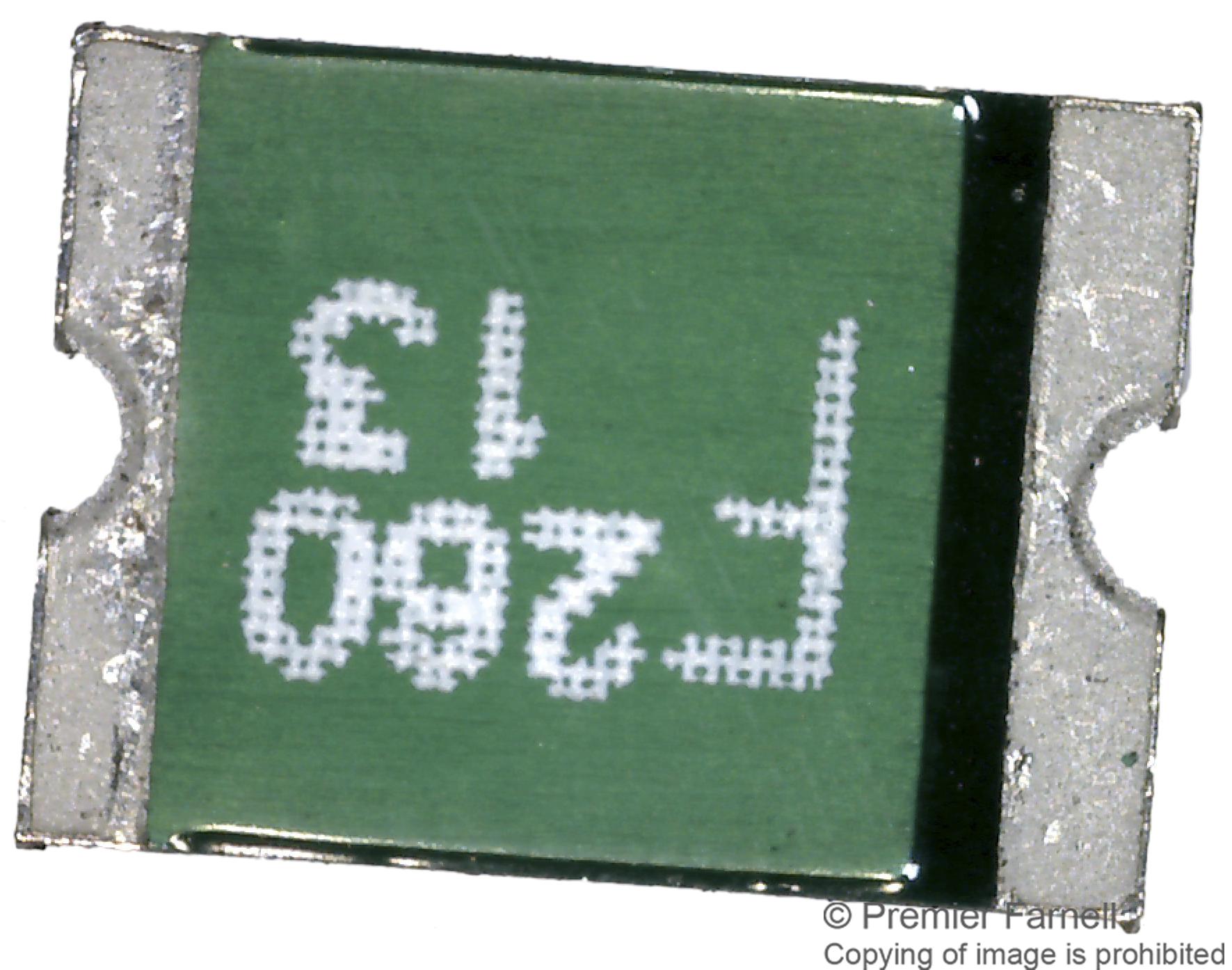

MULTICOMP PRO MC36242 Surface Mountable Resettable Fuse
The multicomp Pro surface mountable resettable fuse provides reliable overcurrent protection for high-density electronic boards. These solid-state devices feature fast trip times, lower resistance, and operate within a voltage range of 6V to 60V, suitable for all high-density applications. Made with RoHS-compliant materials, they ensure safety and environmental standards. Designed for efficient reflow soldering with pure tin termination pads, the fuse can withstand temperatures from -40°C to 85°C, offering dependable protection with quick response times for sensitive electronic circuits.
MULTICOMP PRO MC36242 Surface Mountable Resettable Fuse Specifications:
- Voltage Range: 6V to 60V
- Temperature Range: -40°C to 85°C
- RoHS Compliant
- Terminals: Pure tin
- Soldering: Meets EIA RS 186-9E, ANSI/J-std-002 category 3 standards
- Dimensions (Millimetres): A: 4.37-4.73, B: 3.07-3.41, C: 0.4-1.55, D: 0.25-0.95, E: 0.25-0.65
- Physical Mounting: Surface mount
- Material: Pur tin substrate
- Application: Overcurrent protection for high-density PCBs
- Maximum Continuous Current: 0.1A to 26A depending on model
- Trip Current: As low as 0.3A up to 49A depending on model
- Maximum Voltage withstand: Up to 60V
- Time to Trip: Faster than standard SMD Fuse devices, varies by model
- Electrical Resistance: Lower than standard SMD devices, ensuring minimal power loss
Buy the Multicomp Series Surface Mountable PTC Fuse: MC36242
Purchase your Multicomp Series MC36242 resettable fuse online today and benefit from rapid overcurrent protection for your high-density applications. Designed for easy surface mounting, this fuse features low resistance, fast trip times, and RoHS compliance, making it ideal across various electronic projects. Its reliable operation within a wide temperature range of -40°C to 85°C ensures safety and longevity. With a voltage capacity from 6V to 60V, it adapts perfectly to your circuit protection needs, delivering trustworthy performance in demanding environments.
Order your Multicomp Series MC36242 high-performance resettable fuse today and ensure your electronic circuits are protected with dependable, fast-acting safety components.
