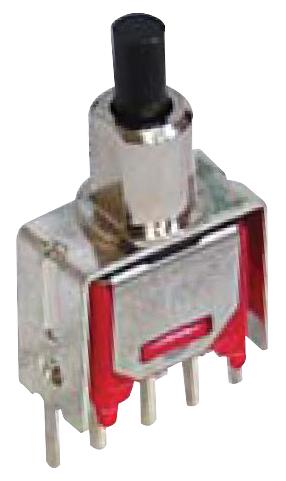

MULTICOMP-PRO MC8MS8P1B06VS2QES Pushbutton Switch
This sub-miniature pushbutton switch offers reliable operation with a variety of mounting options including PCB, right-angle, vertical bracket, and V-bracket. Designed for precise control applications, it features a durable contact system rated for 50,000 cycles, with choices for silver or gold plating for enhanced conductivity. It features RoHS compliance, epoxy sealing for environmental protection, and multiple termination options such as solder lug and PC mounting. The switch operates within a temperature range of -30°C to 85°C, making it suitable for industrial and electronic device applications.
MULTICOMP-PRO MC8MS8P1B06VS2QES Pushbutton Switch Specifications:
- Contact Rating: 1A at 250V AC, 3A at resistant load at 120V AC or 28V DC
- Mechanical Life: 50,000 cycles
- Max. Contact Resistance: 20mΩ at 2V DC, 4V DC
- Min. Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000V rms at sea level
- Operating Temperature: -30°C to 85°C
- Materials: Case - Diallyl phthalate, Bushing - Brass with nickel plating, Housing - Thermoplastic Polyester-black, Contact - Silver or gold plated, Terminal - Brass, tin plated, Terminal support - Brass, silver plated
- Switch Function: SPST, SPDT, Off-MOM, ON-MOM, On-On options
- Mounting Styles: PCB, right-angle, vertical bracket, V-bracket
- Bushing Options: B05 (THD), B10 (Non-THD)
- Termination Options: Solder Lug, PC Mounting
- RoHS Compliant
Buy the Buy multicomp Pushbutton Switch Part Number MC8MS8P1B06VS2QES Online
Purchase the multicomp Pushbutton Switch MC8MS8P1B06VS2QES online today. This high-quality, RoHS compliant switch offers robust contact durability, multiple mounting options including PCB and V-bracket, and sealed construction for environmental resistance. Perfect for industrial and electronic applications, it features silver or gold contact plating, a rated lifespan of 50,000 cycles, and operating within -30°C to 85°C. Order now to ensure reliable operation and seamless integration into your control systems with easy online accessibility.
Buy multicomp MC8MS8P1B06VS2QES now and experience unmatched reliability and versatile mounting options for your electronic control needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC8MS8P1B06VS2QES?
You can click on the BUY or RFQ button to purchase MC8MS8P1B06VS2QES from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC8MS8P1B06VS2QES?
You can download the MC8MS8P1B06VS2QES datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC8MS8P1B06VS2QES?
MULTICOMP-PRO
