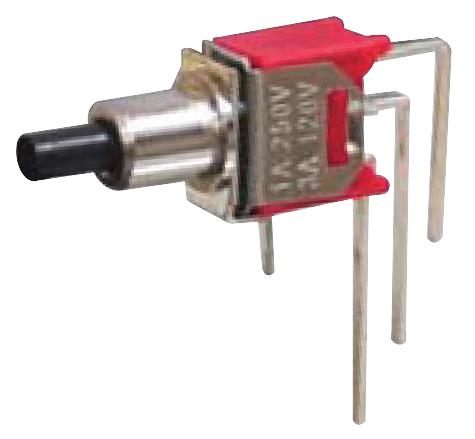

MULTICOMP PRO MC8MS9P1B06M7QES industrial pushbutton switch
This sub-miniature pushbutton switch features a compact design with reliable electrical performance, suitable for industrial control panels and electronic devices. It offers multiple pole options including SPDT and DPDT configurations, with contact ratings up to 3 A at 120 V AC or 28 V DC. Constructed with high-quality materials like copper, brass, and stainless steel, it ensures durability and resistance to wear. Ideal for applications requiring precise momentary or maintained switch functions, with secure mounting options including PCB and right-angle configurations. The switch is RoHS compliant and available with silver or gold contacts for improved conductivity and longevity.
MULTICOMP PRO MC8MS9P1B06M7QES industrial pushbutton switch Specifications:
- Contact rating: 3 A at 120 V ac or 28 V de, 1 A at 250 V ac
- Mechanical life: 50,000 make-and-break cycles
- Initial contact resistance: 20 mΩ at 2-4 V dc, 100 mA
- Insulation resistance: 21,000 MΩ
- Dielectric strength: 1,000 V rms at sea level
- Operating temperature: -30°C to 85°C
- Materials: Case made of Diallyl phthalate, thermoplastic polyester, brass, stainless steel, silver or gold plated contacts
- Dimensions vary by model, with mounting options including PCB, right-angle, vertical, and V-bracket
- Soldering: Manual, wave, Vapour phase; recommended temperature 260±5°C for a maximum of 5 seconds
- Certifications: RoHS compliant
Buy the multicomp MC8MS9P1B06M7QES – Reliable Pushbutton Switch for Industrial Applications
Purchase your multicomp MC8MS9P1B06M7QES pushbutton switch online now and benefit from fast delivery and competitive pricing. This compact, reliable switch offers multiple configuration options, including PCB, right-angle, and V-bracket mounting. Designed for industrial control panels and electronic applications, it features high durability, contact ratings up to 3 A, and RoHS compliance. Whether you need a momentary or maintained function, this switch guarantees precise operation and long life, making it an essential component for your control and automation projects. Buy now for quality and reliability you can trust.
Order your multicomp MC8MS9P1B06M7QES pushbutton switch today and ensure long-lasting, dependable switching performance for your control systems.
