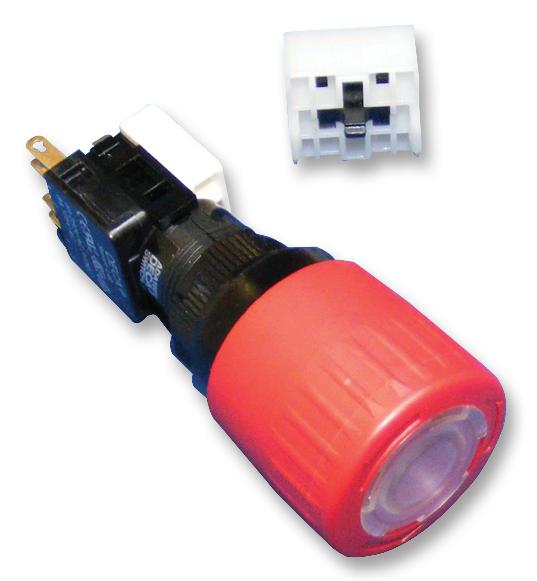

MULTICOMP PRO MCADA16E6R11B10R Emergency Stop Switch
This emergency stop switch features blade terminals and is designed for quick, reliable shutdown in industrial and automation systems. It offers a mechanical lifetime of over 0.1 million operations and has a rated voltage of 250V AC, 5A, with a maximum insulation voltage of 2,000V. The switch withstands IP 65 protection level, operates effectively in temperatures from -40°C to +70°C, and can be mounted on panels with thicknesses between 0.5mm and 5mm. Suitable for safety applications, it provides a sturdy, waterproof, and durable solution for emergency pause functions.
MULTICOMP PRO MCADA16E6R11B10R Emergency Stop Switch Specifications:
- Mechanical lifetime: >0.1 million operations
- Electric rating: 250V AC, 5A; 125V AC, 8A
- Maximum insulation voltage: 2,000V, 60Hz, 1 minute between all terminals and ground
- Minimum motion tolerance: <10 operations
- Panel thickness: 0.5mm to 5mm
- Degree of protection: IP 65
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +70°C
- Soldering/Plug-in type, hole diameter: 29mm
- Material and physical dimensions: 42g weight, diameter 28mm min, 42mm max height, bottom view includes electrical diagram
- Suitable for safety and emergency shutdown applications in industrial environments
Buy the Multicomp Series Emergency Stop Switch: MCADA16E6-R11-B10R
Secure your industrial safety systems with the high-quality Multicomp Pro emergency stop switch model MCADA16E6-R11-B10R. Designed for quick and reliable shutdown, it features blade terminals, IP 65 protection, and a rated voltage of 250V AC at 5A. Its robust construction withstands harsh environments with temperatures from -40°C to +70°C and a panel thickness compatibility of 0.5mm to 5mm. Easy to install with a hole diameter of 29mm, this switch ensures safety, durability, and dependable operation in critical safety applications.
Get Multicomp Pro emergency stop switch MCADA16E6-R11-B10R today—built for safety, durability, and reliable emergency shutdown in industrial control systems.
