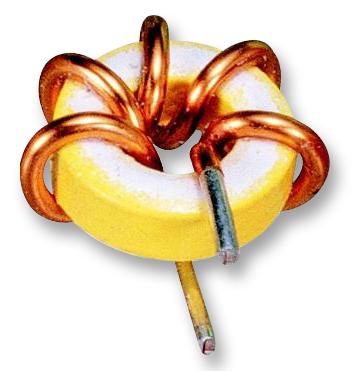

MULTICOMP PRO MCAP108224076A391LU Industrial Power Inductor
This high-inductance inductor offers 390 microhenries with a ±15% tolerance, designed for reliable performance in demanding electronic circuits. Constructed with T80B-75-TAF200 core material and 0.5mm UEFN/U copper wire rated for 155°C, it ensures low DCR and stable inductance at 25°C. Its compact dimensions include a maximum height of 23mm, width of 12.5mm, and length of 121mm. The component withstands operating temperatures from -55°C to +130°C, making it suitable for industrial and automotive applications, with RoHS compliance ensuring environmental safety.
MULTICOMP PRO MCAP108224076A391LU Industrial Power Inductor Specifications:
- Inductance: 390μH ±15%
- Core Material: T80B-75-TAF200
- Wire: UEFN/U (155°C), 0.5mm
- DCR: 250mΩ max.
- Operating Temperature: -55°C to +130°C
- Solderability: Lead-free, 260°C for 5 seconds, 95% surface coverage minimum
- Dimensions: Length 121mm, Width 12.5mm, Height 23mm (max), minimal thickness 4mm
- Humidity Resistance: 60°C/60% RH, no damage after 40 hours
- Moisture Sensitivity Level: J-STD-020B level 3
- Reliability: Withstands 8-hour steam aging at 98% RH and 97°C
Buy the Multicomp 390H – Reliable Inductor for Industrial Applications
Secure your Multicomp 390H inductor today through our online store. This reliable component features a 390μH inductance with tight tolerance, low DCR, and high-temperature stability suitable for demanding circuits in industrial and automotive environments. Its RoHS-compliant design ensures environmental safety, and the lead-free solderability simplifies manufacturing. Withstanding temperatures from -55°C to +130°C and resistant to humidity and moisture, this inductor enhances circuit stability and longevity, making it an ideal choice for engineering professionals and electronics designers.
Order your Multicomp Series MCAP108224076A391LU high-capacity inductor today and enhance your circuits with dependable, high-temperature performance.
