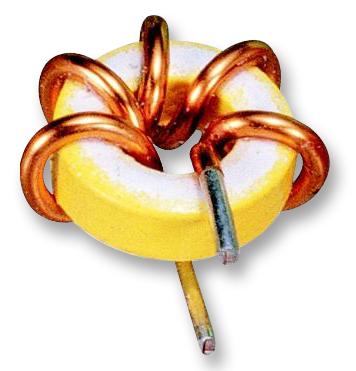

MULTICOMP-PRO MCAP110624132A162U Power Inductor
This 1.6mH inductor from the multicomp series offers high current capacity with a 500mA DC rating, operating efficiently from -55°C to +130°C. Crafted with a ferrite core, it features low DCR (20.48mΩ max) and is RoHS compliant, making it suitable for various electronic applications. Its compact design measures approximately 28.88mm in length and 13.25mm in width, with a wire gauge of 0.5mm UEFN/U rated for 155°C. Ideal for power filtering, it ensures stable inductance at 40KHz, supporting high RMS currents and reliable operation in demanding environments.
MULTICOMP-PRO MCAP110624132A162U Power Inductor Specifications:
- Core Material: Iron Powder
- Inductance: 1.6mH
- DC Current Rating: 500mA
- DC Resistance Max: 20.48mΩ
- RMS Current (Irms): 211A
- Operating Temperature: -55°C to +130°C
- Dimensions: Length approximately 28.88mm, Width approximately 13.25mm
- Wire Gauge: 0.5mm UEFN/U rated for 155°C
- Test Frequency: 40KHz at 5mA, typical at 10KHz with 5mA/1A Irms
- RoHS Compliant
- Solder Temperature: 260°C for 5s
- Solderability: 95% coverage, lead-free solder
- Moisture Resistance: 60°C, 60% RH, 40 hours
- Reliability testing confirms stability in inductance and appearance over temperature and humidity.
Buy the Multicomp Series Inductor: 1.6mH 500mA RoHS Compliant MCAP110624132A162U
Purchase the high-quality multicomp power inductor MCAP110624132A162U online today and ensure reliable power filtering in your electronic projects. This 1.6mH inductor boasts a robust ferrite core, low DCR, high RMS current capacity of 211A, and operates efficiently over a wide temperature range from -55°C to +130°C. Its compact size, RoHS compliance, excellent solderability, and stability under humidity and thermal stress make it an ideal choice for power supplies, filtering circuits, and high-performance electronic designs. Order now for long-lasting, dependable performance.
Get Multicomp series 1.6mH inductor MCAP110624132A162U today—built for precision, durability, and high-temperature performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCAP110624132A162U?
You can click on the BUY or RFQ button to purchase MCAP110624132A162U from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCAP110624132A162U?
You can download the MCAP110624132A162U datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCAP110624132A162U?
MULTICOMP-PRO
