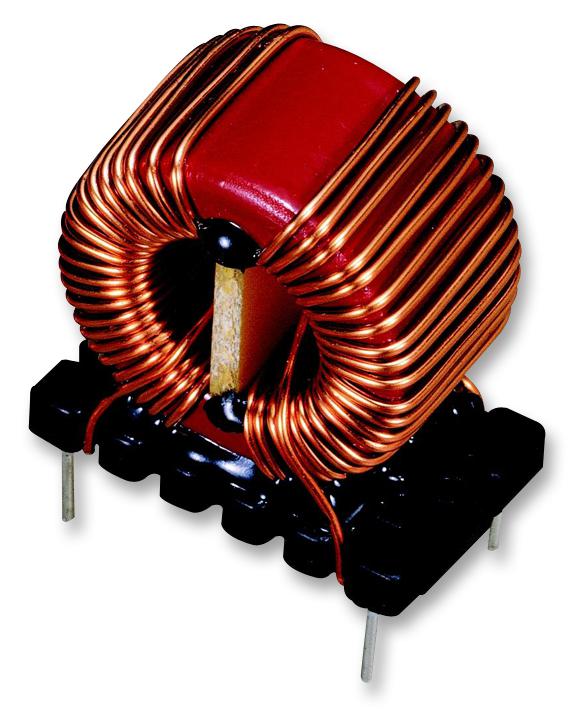

MULTICOMP PRO MCAPB109020067A301MU Power Inductor
This high-quality choke coil features an inductance of 300μH with a tolerance of 20%, designed for reliable performance in industrial electronic circuits. Constructed with a T90-75-TAF200 core and 0.8mm UEFNIU wire rated at 155°C, it is RoHS compliant and meets strict reliability standards including moisture resistance, storage stability, and solderability. Equipped to operate within a temperature range of -55°C to +130°C, it provides excellent inductance stability at 10kHz and 0.25V. The coil ensures minimal DCR and temperature rise while maintaining high performance under various environmental conditions.
MULTICOMP PRO MCAPB109020067A301MU Power Inductor Specifications:
- Inductance: 300μH with 420% tolerance at 10kHz and 0.25V
- DCR: Max 170mΩ
- Temperature Range: -55°C to +130°C
- Core Material: T90-75-TAF200 (Red / White)
- Wire: 0.8mm UEFNIU rated at 155°C
- Solder Material: Lead-free Sn99.3% / Cu0.7%
- Operating Frequency: 10kHz, 0.25V, at 25°C
- Moisture Sensitivity: No damage after 40hrs at 60°C, 60%RH
- Solderability: Achieves 95% surface area coverage at 260°C for 2-3 seconds
- Reliability Testing: Meets J-STD-020B level 3, with thermal stability, moisture resistance, and storage criteria
- Dimensions: Avg. length 31.01mm, width 10.03mm, height 25.87mm, typical ins. thickness 1.04mm
Buy the Multicomp 300HH U+2013 Reliable Inductor for Industrial Applications
Discover the reliable performance of this 300μH power inductor, engineered for industrial electronics and high-demand applications. Featuring durable construction with RoHS compliance and excellent temperature stability from -55°C to +130°C, it guarantees consistent inductance at 10kHz. Its robust design includes high-temperature rated wire and low DCR for minimal power loss. Perfect for circuit filtering, energy storage, and noise suppression, this inductor ensures durability and stability in demanding environments. Available for immediate purchase online, enhancing your project’s reliability and efficiency.
Order your Multicomp Series 300HH choke coil today and ensure your electronic devices operate efficiently with dependable inductance performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCAPB109020067A301MU?
You can click on the BUY or RFQ button to purchase MCAPB109020067A301MU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCAPB109020067A301MU?
You can download the MCAPB109020067A301MU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCAPB109020067A301MU?
MULTICOMP PRO
